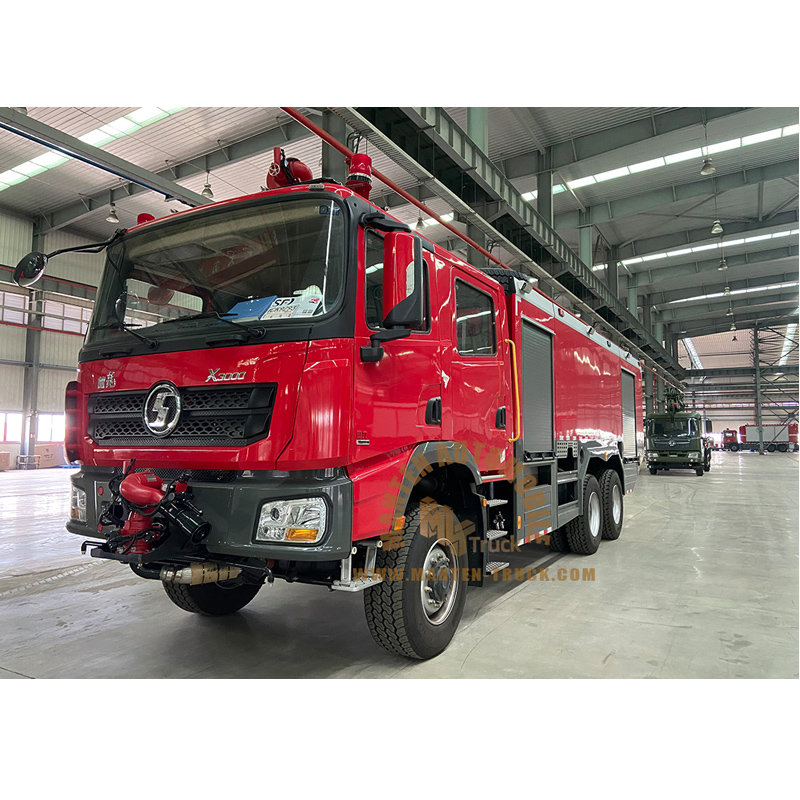

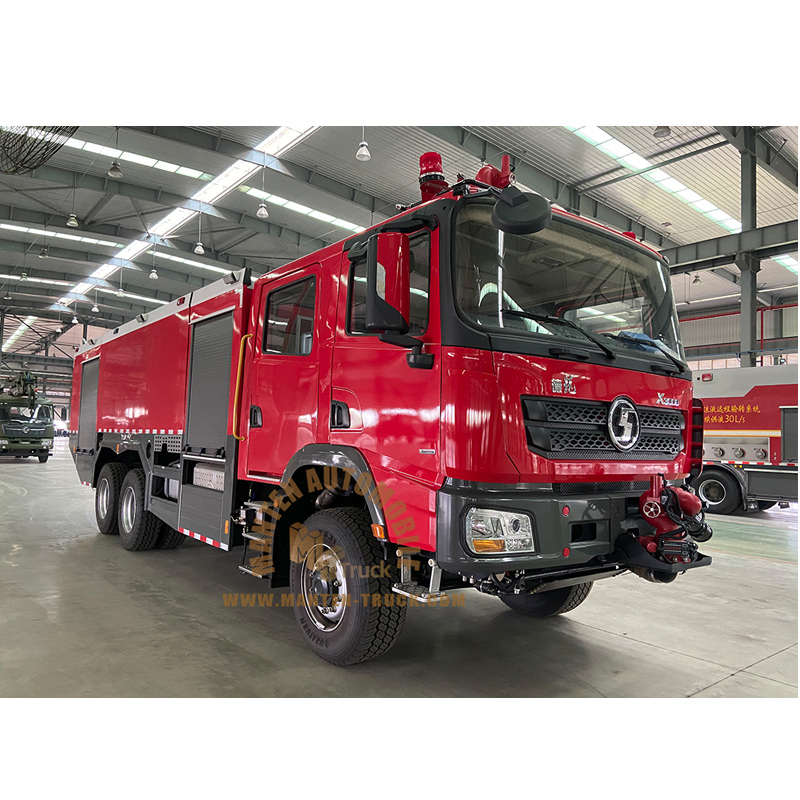

1. This Shacman 10ton aircraft Rescue firefighting vehicle(ARFF) adopts Shacman 6x6 all driven chassis which has good good performance of the moving and cross-country.
2. This Shacman 10ton aircraft Rescue firefighting vehicle(ARFF) could be equipped with two double engines. One is for truck chassis, the other one is for driving fire pumps. It can put out the fires when the truck is running at any speed without stopping.
3. This Shacman 10ton aircraft Rescue firefighting vehicle(ARFF) could be equipped two electronic control fire monitors , one is on the top of the truck cabin, the other one is on the bumper of the front vehicle.
4. The Shacman 10ton aircraft Rescue firefighting vehicle(ARFF) is equipped with self-protection system which can protect the trucks well when putting out a fire.
SPECIFICATION | ||
Truck Specification | ||
Product Name | Shacman 10ton aircraft Rescue firefighting vehicle(ARFF) | |
Truck Manufacturer | MANTEN GROUP | |
Overall dimensions (L×W×H) | About 10000*2500*3900mm | |
Chassis Specification | ||
Cabin | Crew cabin, with A/C | |
Drive type | 6*6 | |
wheelbase | 4600mm+1400mm | |
Fuel type of engine | Diesel | |
Engine | Model | WP12.550 |
Maximum horse power | 550HP /2100 r/min | |
Number of cylinders | 6 | |
Emission standard | Euro 3 | |
Gear box | Type | Automatic |
Tyres | Size | 395 / 85R20 |
Quantity | 10+1 spare tire | |
Upper body specification | ||
Water tank | Capacity | 2000L, 4000L, 5000L, 6000L, 8000L, 10000L, 12000L, |
Tank Material | Stainless steel | |
Foam tank | Capacity | 1000L, 1500L , 2000L, 2500L, 3000L |
Tank Material | Stainless steel | |
Dry powder | Capacity | 250kg, 500kg, 1000kg, 1500kg, 2000kg and etc |
Function | Equipped with 6x6 all driven truck chassis which have a good performance of the moving and cross-country. | |
Equipped with double engines. The fire extinguishing system can be carried out simultaneously when the vehicle is running at any speed without stopping. | ||
Equipped with two electronic control fire monitors , one is on the top of the truck cabin, the other one is on the bumper of the front vehicle. | ||
Equipped with self-protection system which can protect the trucks well when putting out a fire. |
