25mt lpg tank semi trailer

25mt LPG Tank Semi Trailer

1. The 25mt LPG tank trailer use 3 axle. BPW brand or Fuwa brand. Loading weight is around 25tons.

2. The main material of the tank body is Q345R for pressure vessels; Thickness of tank body is 12mm.

Design pressure is 1.61Mpa

3. Safety accessory parts: safety valve, safety valve cover, single outlet double valve box, single tool box, level gauge, pressure gauge, thermometer, emergency shut-off valve, fire extinguisher, fire star cover, anti-static grounding tape, guard rail, tire guard board

Specification of 25mt LPG Tank Semi Trailer

Tanker Essential Information
Volume of Tank50000liters/ 50cbm/50m3/ 25tons
Overall Dimensions(L*W*H)(mm)12700*2480*3800
Tank Dimensions(Inner Diameter*thickness*Length)2450*11.5*12340
Estimated Tare Weight (kg)15480
Total Weight(kg)39000
Shell of Tanker
Liquefied Petroleum Gas (propane)
Fluid Property
Design Temperature(℃)-50℃~60℃
Design Pressure(MPa)1.61
Corrosion Allowance(mm)1
Weld Joint Factor1
Major Materials of Bearing PressureTanker body:Q345R,12mm,
End plate:Q345R,12mm,double ellipse
Main beam:Q345
Safety AccessoriesSafety valve, Level Gauge, Thermometer, Pressure Gauge, Emergency cut-off valve, Ball valve
Trailer  Specification
I Beam &ChassisHeavy duty and extra durability designed I beam; Opting for high tensile steel Q345B, welded by automatic Submerged-Arc processes. Top Flange 14mm,width 140mm; Middle Flange 6mm,Height 500mm, Bottom Flange 16mm,width 140mm.
Axle3 axles
BPW 13 ton
SuspensionGerman design mechanical suspension
Leaf Spring13-piece leaf spring. 11x100
King PinJOST brand 2” Bolt-in King Pin
Landing GearJOST brand Two-speed, manual operating, heavy duty landing gear
Wheel Rim9.00R22.5 wheel rim, 13 pieces
Tire12R22.5 tubeless tire with one spare tire, 13 pieces
Spare TireOne set of spare tire including a carrier
Braking SystemWABCO RE 6 relay valve; T30/30+T30 Spring brake chamber; 45L air tanks
PaintingComplete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint
AccessoriesOne standard tool box


25mt LPG Tank Semi Trailer Gallery

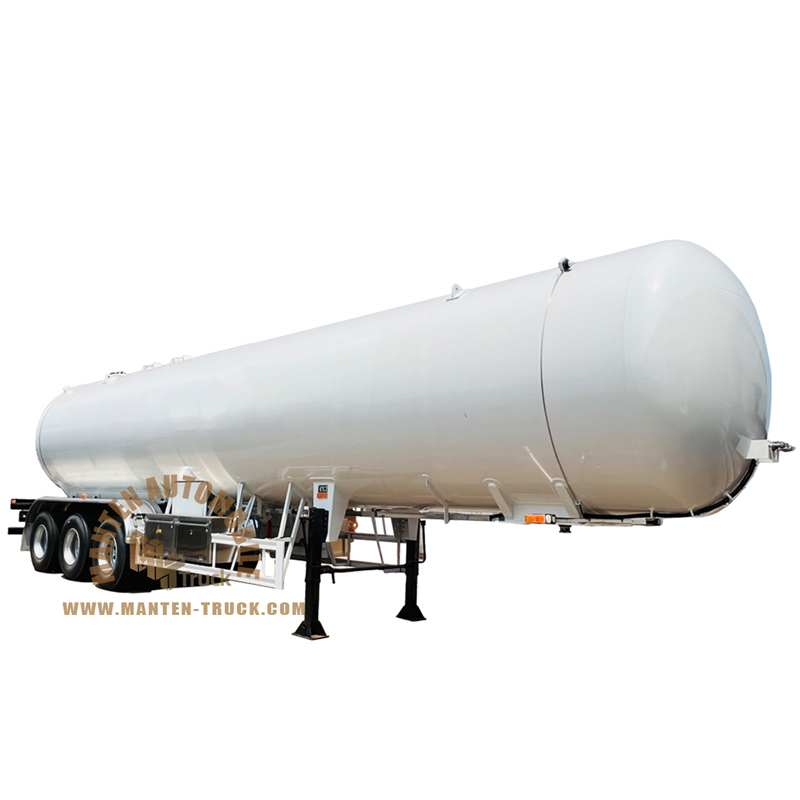

lpg trailers for sale
