isuzu elf 4x2 8m3 refueling truck

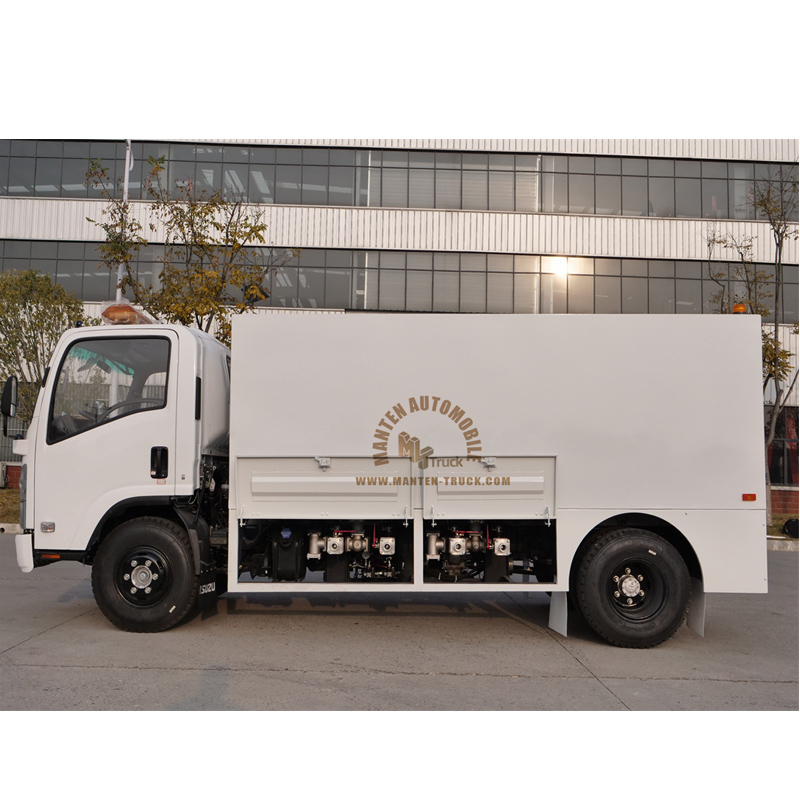

Isuzu ELF 4x2 8m³ Refueling Truck

1. Customized Mobile refueller truck with the appearance and functions of CAFU fuel trucks. Customers can use their national linked apps to realize mobile refueling.

2. This Fuel truck adopts ISUZU ELF chassis, 8000Liters FuelTank, equipped with 2 independent structure compartments for 2 diffrent kind oil.

3. The tank body is made of  Q235B carbon steel. The tank innner body shall be treated with rust prevention and oil coating.

4. Tank pipe network system: it is made of all aluminum alloy and has double networks, which can realize self suction, self pumping and self flow oil drainage.

5. Standard configuration: aluminum alloy oil pump, European standard manhole with breathing valve, Bottom valve for Emergency cut-off, Non slip walkway and foldable handrail on the top of tank, Pipeline filter screen, Fire extinguisher, 2pcs discharge hose and storage on each side, Safety warning marks on the tank.

6. Special function configuration: equipped with aluminum alloy pump, computer control system for accurate liquid level display,2pcs independent piping system and refueling system, main control system at the rear of the tank.

Specification of Isuzu ELF 4x2 8m³ Refueling Truck

Truck Specification
Product Name6000Liters Isuzu ELF Mobile Refueller Truck
Truck ManufacturerMANTEN GROUP
Chassis Specification
Chassis BrandIsuzu Elf
Drive type4x2, Left hand drive
Fuel type of engineDiesel
EngineBrandIsuzu 4HK1CN5LS
Maximum horse power98HP
Emission standard2
Gear boxTypeMSB 5T

Upper body specification
Fuel TankCapacity6m³ / 6000Liters /6CBM
Tank MaterialQ235B carbon steel
Compartment2 compartment
Transport mediumDiesel and gasoline
FunctionManhole on top tankerEuropean standard, including pressure relief valve
Safety ValveEuropean Standard
Discharge ValveAlluminum Alloy Ball Valve type
Emergency Cutoff DeviceAlluminum Alloy Bottom Valve
Oil Pumpaluminium alloy
Fuel Dispenser1pcs for each compartment, total 2pcs
Refueling reel15M Refueling reel with refueling gun, total 2pcs
Liquid level displayComputer control system for each compartment
Piping System2 pcs independent pipeline system
Standard configurationTool box, climbing ladder, handrail, fire extinguisher, 2pcs oil hose etc are included


Isuzu ELF 4x2 8m³ Refueling Truck Gallery

refuel truck
truck refueling
refueling truck for sale
diesel refueling truck
mobile refueling truck
