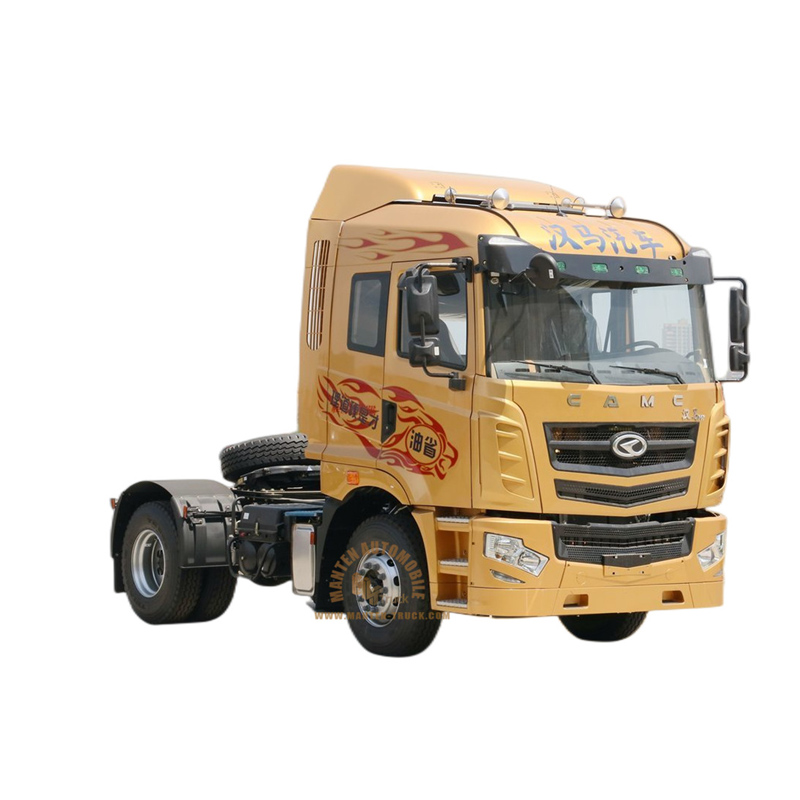

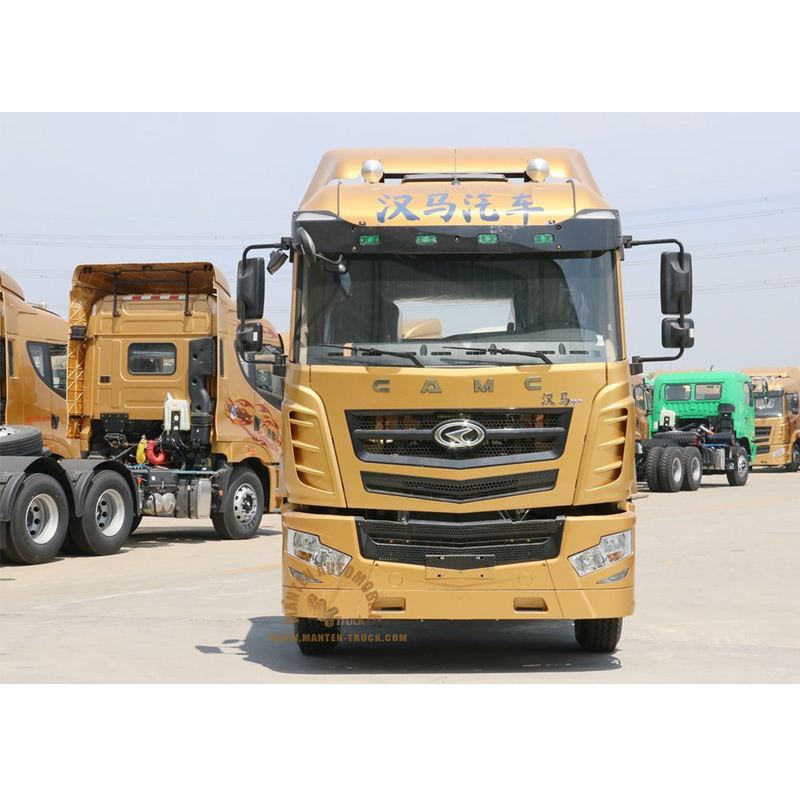

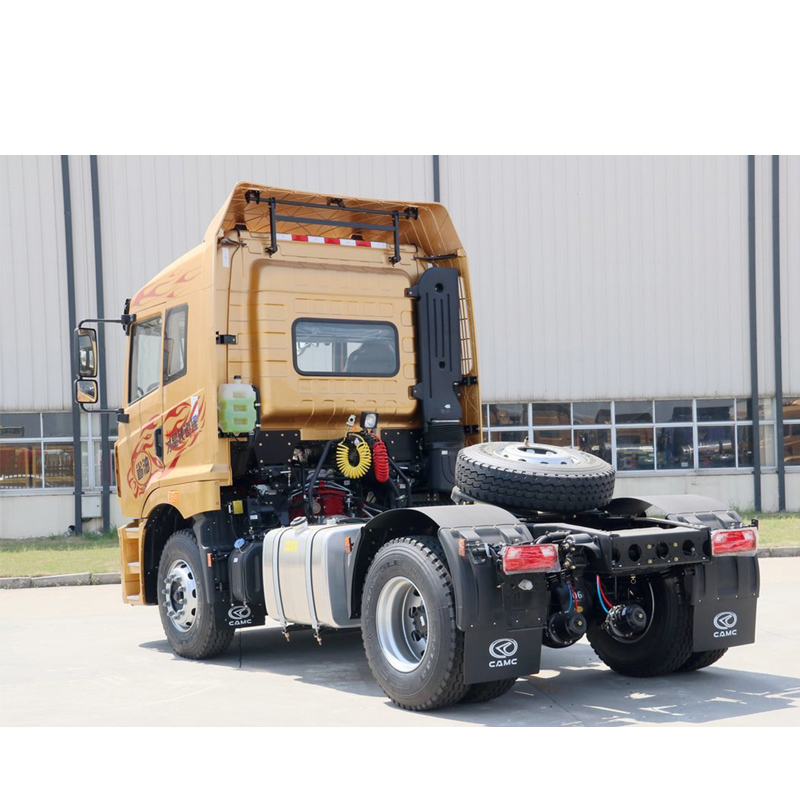

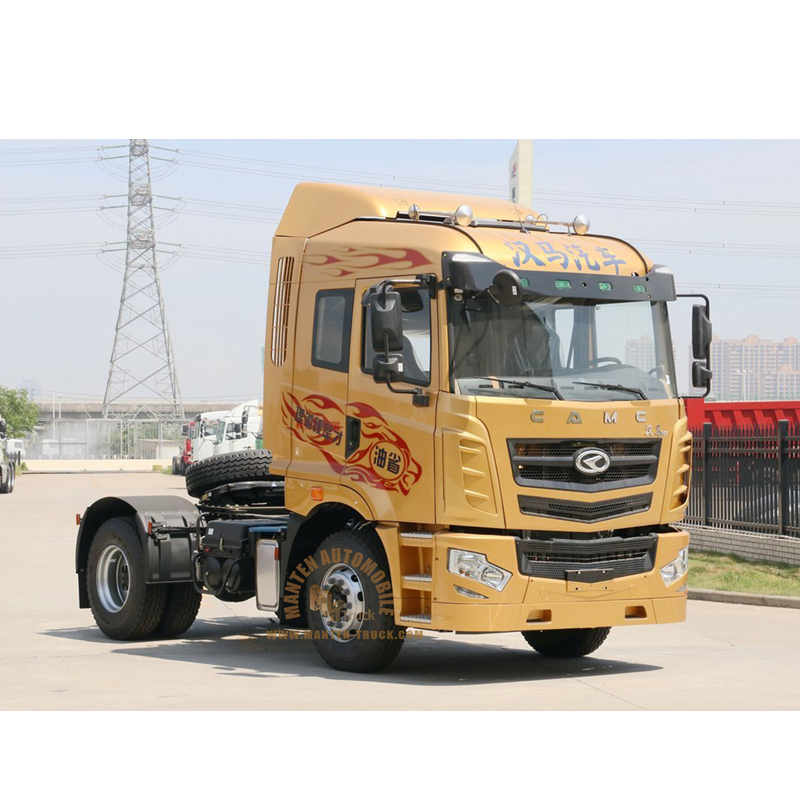

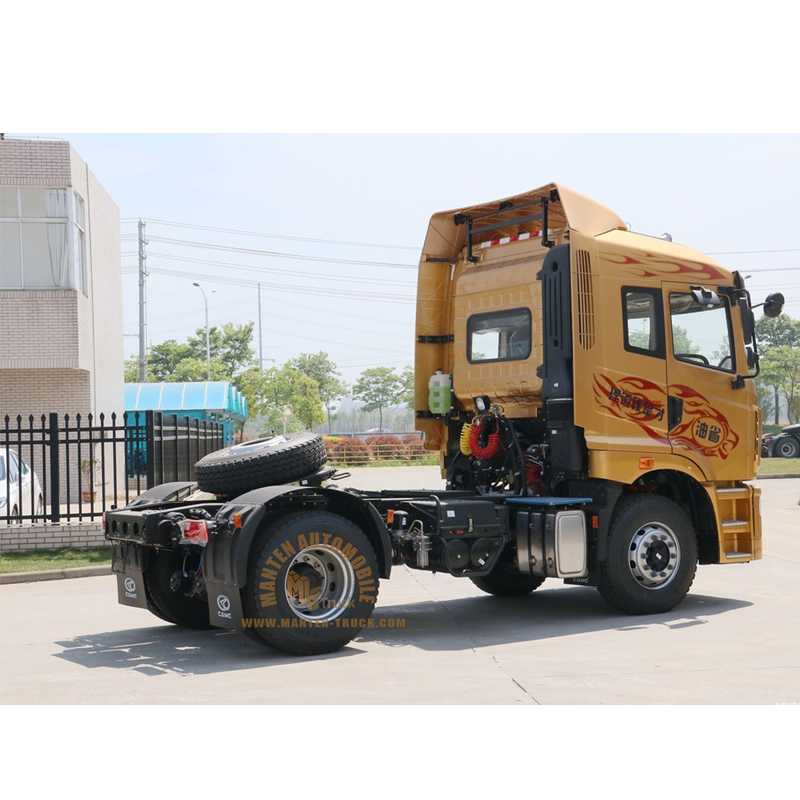

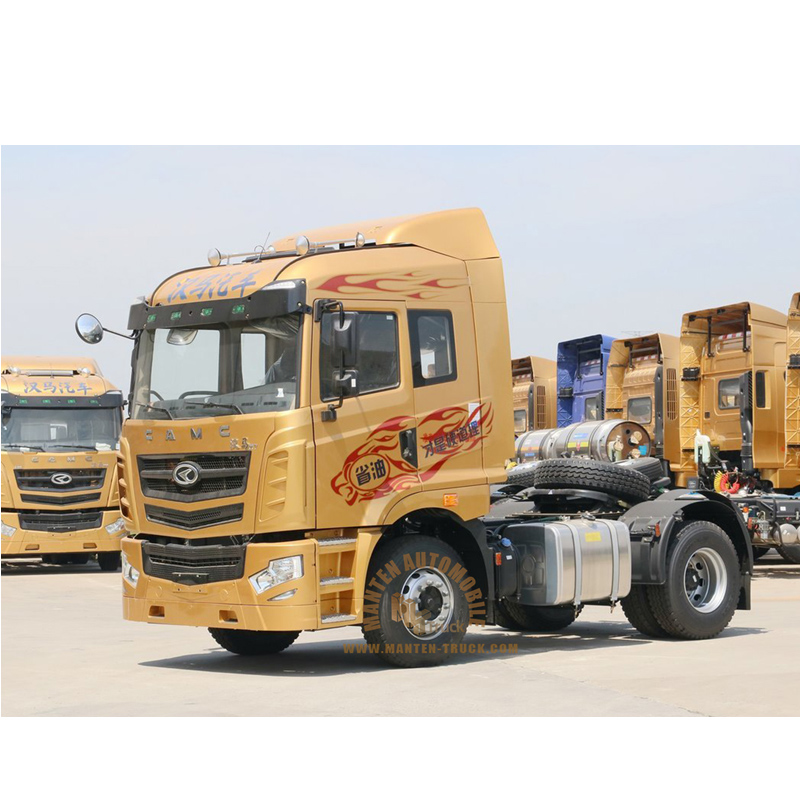

1. This prime mover adopts CAMC H7 chassis,total traction mass is 35T.
2. Equipped with ABS antilock,aluminum alloy gas storage tank,aluminum alloy oil tank.
3. CAMC Hanma transmission is a new type of transmission product developed by combining the most advanced international technology,
it is mainly divided into T6 series, T7 series and T7A series, there are light weight aluminum alloy transmission and cast iron transmission, including 8, 9, 12,16 shift gearbox.
SPECIFICATION | ||
Truck Specification | ||
Product Name | CAMC H7 Prime Mover | |
Truck Manufacturer | MANTEN GROUP | |
Overall dimensions (L×W×H) | About 5900x2496x3850mm | |
Chassis Specification | ||
Cabin | Row half cab,LHD | |
Drive type | 4*2 | |
wheelbase | 3800mm | |
Front/Rear Wheel base | 2065/1860mm | |
Maximum speed | 89km/h | |
Fuel type of engine | Diesel | |
Front axle loading capacity | 6500kg | |
Rear axle loading capacity | 2×18000kg | |
Engine | Model | CM6D20.450 50 |
Maximum horse power | 450hp | |
Number of cylinders | 6 | |
Emission standard | Euro 5 | |
Displacement | 10.51L | |
Maximum torque | 2100N·m | |
Gear box | Model | FST 12JSDX240TA-B |
Type | 12 forward &2 rear | |
Tyres | Size | 11.00R20 18PR |
Quantity | 6+1 spare tire | |
Upper body specification | ||
Cab | CAMC Han ma H7 cab, 2seats | |
Total traction mass | 35T | |
Function | Equipped with ABS antilock,aluminum alloy gas storage tank,aluminum alloy oil tank |
