JMC N720 Cargo Truck GVW 3Tons

JMC brand cargo trucks are available in a wide range of sizes and configurations to cater to diverse transportation requirements. Smaller trucks are ideal for local deliveries and urban areas, whereas larger trucks are suited for long-distance and heavy-load transportation. Box trucks featuring enclosed compartments shield goods from adverse weather conditions, flatbed trucks accommodate oversized or irregularly shaped items, and refrigerated trucks transport perishable goods that necessitate temperature control. Freight trucks come with features that ensure the safety and security of cargo, which may encompass tie-down points, locking mechanisms, and even alarm systems in some cases. They can transport a myriad of items, ranging from consumer goods and raw materials to industrial equipment and construction materials. They play a vital role in the supply chain.

Specification of JMC N720 Cargo Truck GVW 3Tons

TECHNICAL SPECIFICATION
Basic Information
Truck Dimension5490*1940*2350Box Dimension3850*1850*380
Truck ModelYZR1040TCA26Truck typePanel type
Drive Type4X2Wheelbase(mm)2850
Box length Level (M3.8EngineJX493
Transmission5-speed gearboxTruck length(mm)5490
Truck width (mm)1940Truck height(mm)2350
Front tread (on wheel )(mm)1460Rear tread (on wheel )(mm)1475
Curb weight (kg)2355Rated loading weight(kg)2005
Gross weight4490Max. Speed(km/h)110
OriginChinaTonnage classLight duty
Approach angle17Departure angle16
Front/rear suspension (mm)1115/1525

Engine Parameters
Engine modelJX493Cylinder number4
Fuel typeDieselCylinder arrangementinline
Displacement (L)2.771Emission standardEuro 2
Max. output power(kw)68Max.Horsepower(hp)92
Max. Torque(N.m)220Max. torque speed(RPM)2200
Rated speed(RPM)1800Engine type/
Cargo box parameters
Cargo box formPanel typeLength (mm)3850
Width (mm)1850Height (mm)380
Cab parameters
Occupancy2personSeat rowsSingle
Cabin width1890mmAir conditionerWITH
Transmission parameters
Transmission Model5-speed gearbox(5MT)Shift modeManual
forward gear5reverse gear1
Chassis parameters
Allowable front axle load(kg)1670Allowable rear axle load(kg)2820
Number of spring plates3/3+3Fuel Tank(L)66
Tires
Tire Specification7.0R16 14PRNumber of tires4
Others Configuration
ABSExhaust Brake×
Bluetooth musicDriver armrest
Driver overhead storage boxOverhead storage box mounted USB port
Brake
Vehicle Brake TypeHydraulic



Trucks

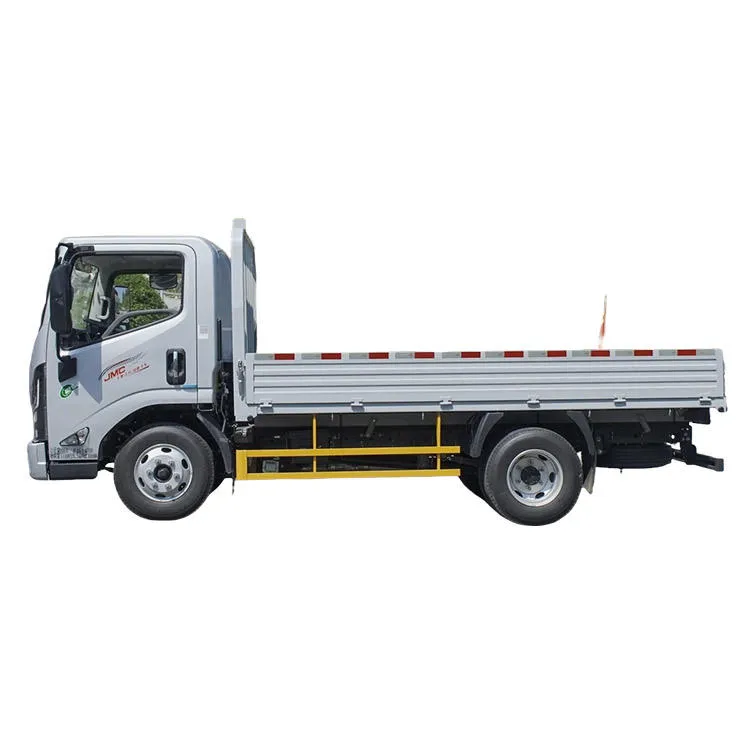

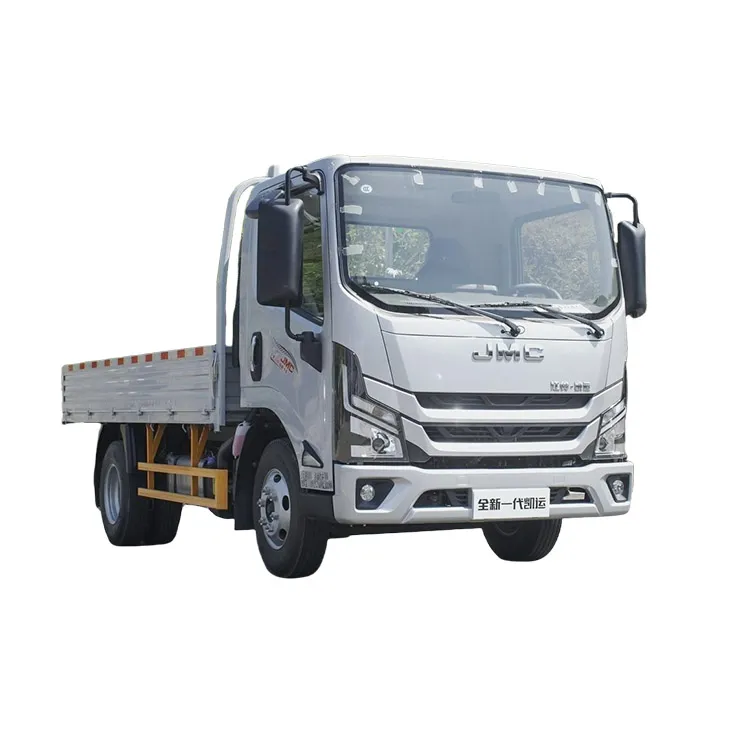

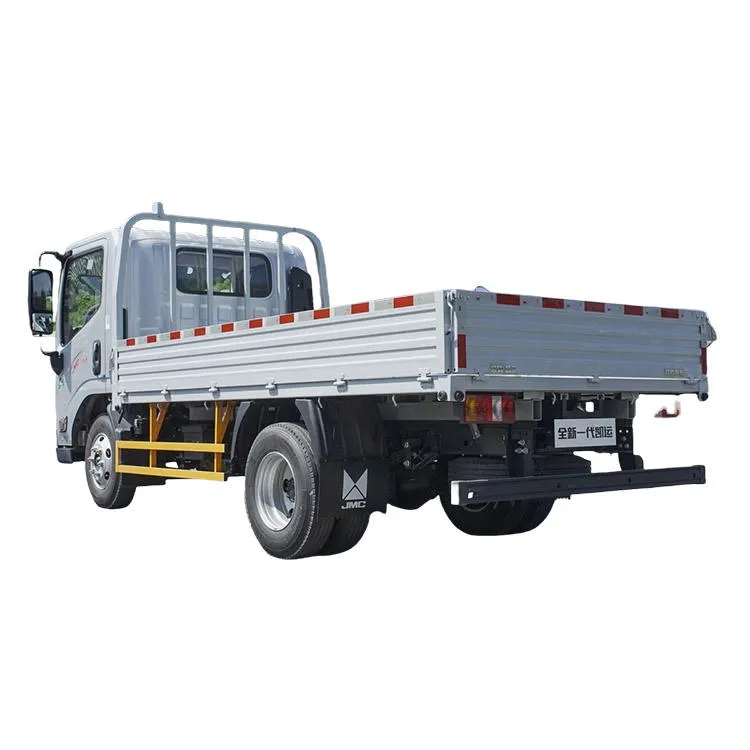

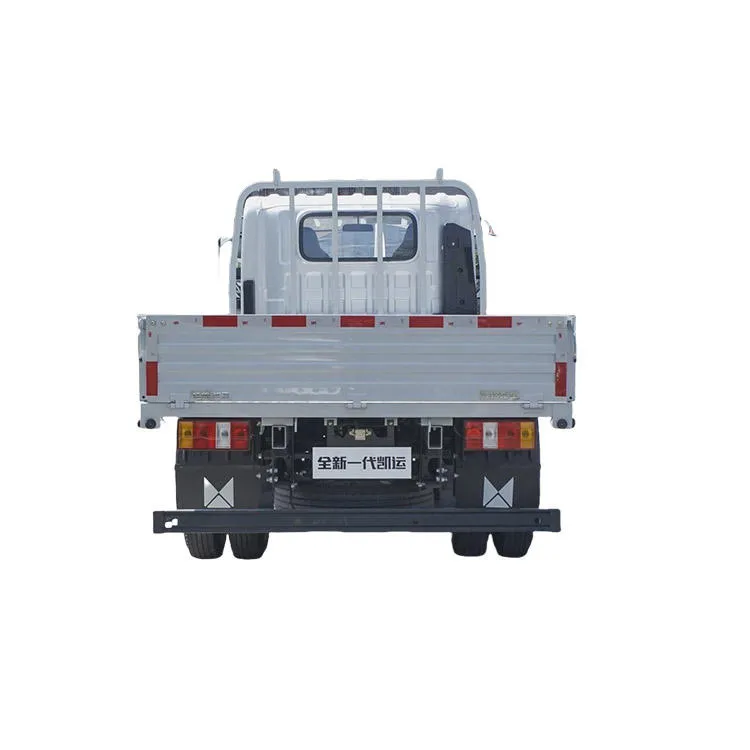

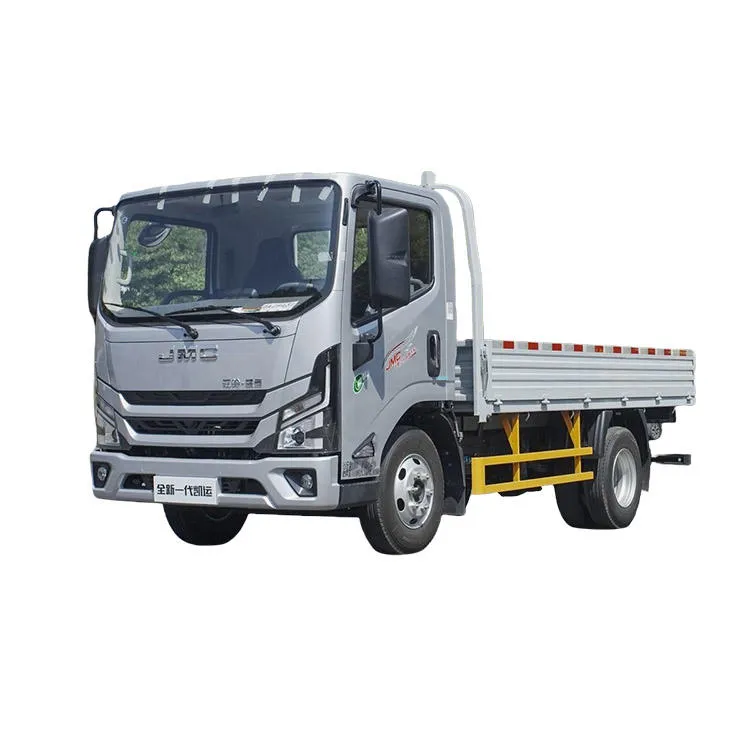

JMC N720 Cargo Truck GVW 3Tons Gallery
