4ons sinotruk howo 4x2 truck with crane

4tons Sinotruk HOWO 4x2 Truck With Crane

1. This Truck with crane adopts Sinotruck chassis, Boom type is Telescopic boom, Max. Loading Weight is 4ton, Max lifting height is 10m.

2. The whole machine adopts finite element lightweight design, with light deadweight and small installation space; Compact and beautiful structure; Polygonal arm body section, with greater lifting capacity and strong bending and torsion resistance under the same amplitude.

3. The turntable is operated by a high position seat, which has a better working view and can be equipped with remote control.

4. Regenerative control and new sequential telescoping control system are adopted to reduce the telescoping pressure loss of the boom, improve the loaded telescoping capacity and the working efficiency of the whole machine.

5. The rotatable double stage double cylinder outrigger is adopted to improve the stability of the whole machine on the basis of improving the adaptability of the site.

6. Double reducers are used to drive slewing, which makes the slewing action more stable and powerful, and the braking effect is better; Upperworks hydraulic proportional valve has good inching performance and can perform compound actions, with high control comfort; The standard high-power radiator ensures that the oil temperature of the crane is not too high during long-term heavy load operation; Standard hydraulic torque limiting valve ensures that customers are more comfortable using the crane.

Specification Of 4tons Sinotruk HOWO 4x2 Truck With Crane

Truck Specification
Product Name4ons Sinotruk Howo truck with crane
Truck ManufacturerMANTEN GROUP
Chassis Specification
Chassis BrandSinotruck,Howo
Drive type4x2
Fuel type of engineDiesel
Maximum horse power116hp
Emission standard5
Gear boxTypeWLY646

Upper body specification
Crane BrandXCMG
Max. lifting capacity4ton
Max. working height10m
Boom sections4sections
Type of CraneTelescopic boom
Rotation angle360° all rotation
Cargo box materialCarbon steel
Cargo box Thicknessbottom: 3mm, side: 1.5mm
Rear bumperCarbon steel
Side Under RunCarbon steel
Mud guard / Mud Flapwith Mudguard and rubber mud flap
Spare Wheel Bracket1piece
LightElectrical system in accordance to GB standard, complete with light for tail, signal, reverse, nameplate light and, and side marker lights at both sides of truck, complete with reflective tape at two sides and rear of the truck.
Painting1 Coat of anticorrosive prime, 2 coats of final paint. Colour as request

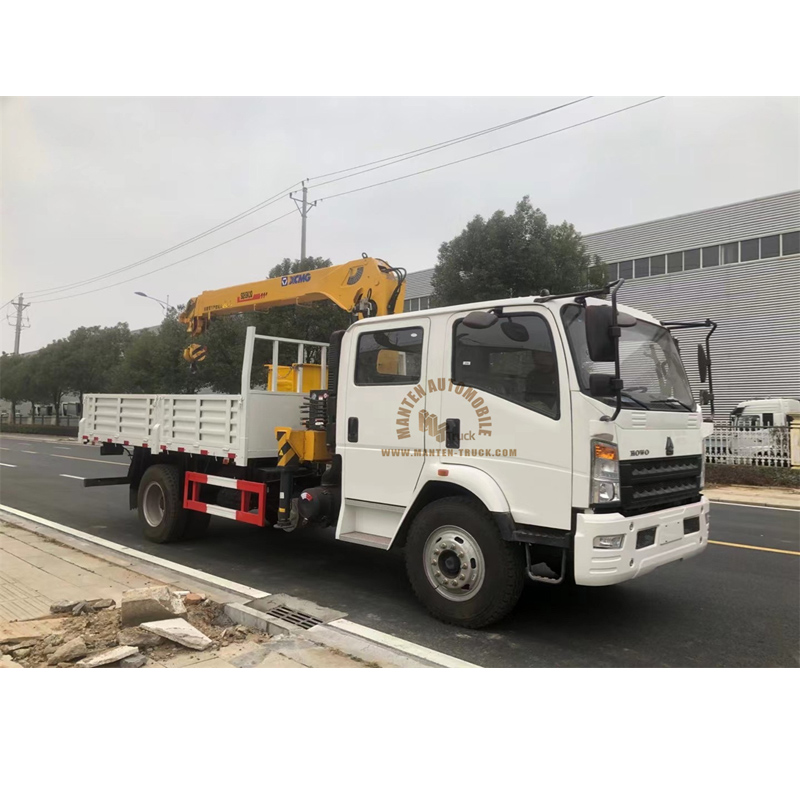

4tons Sinotruk HOWO 4x2 Truck With Crane Gallery
