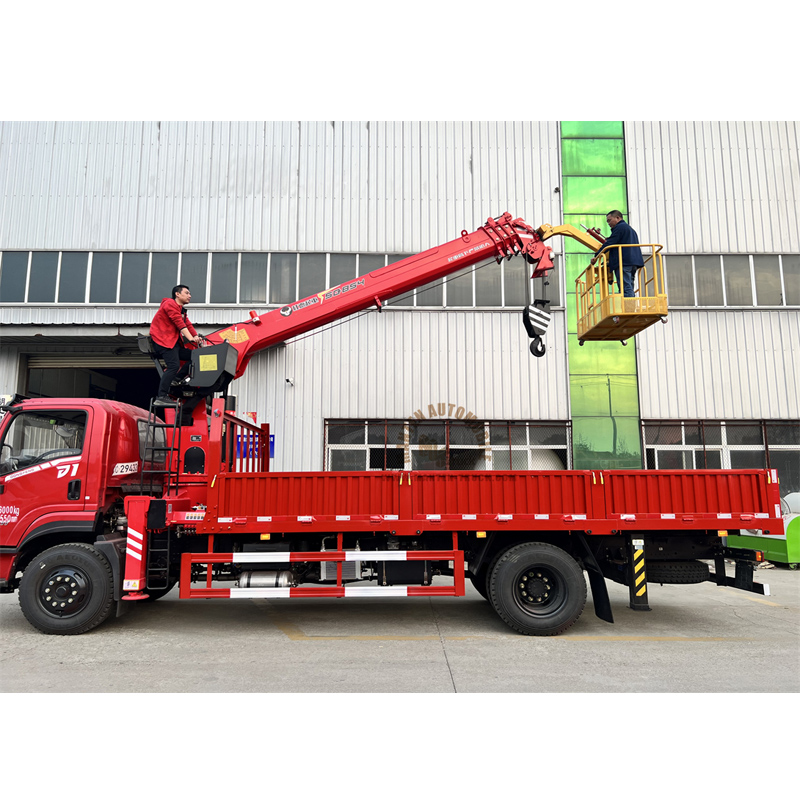

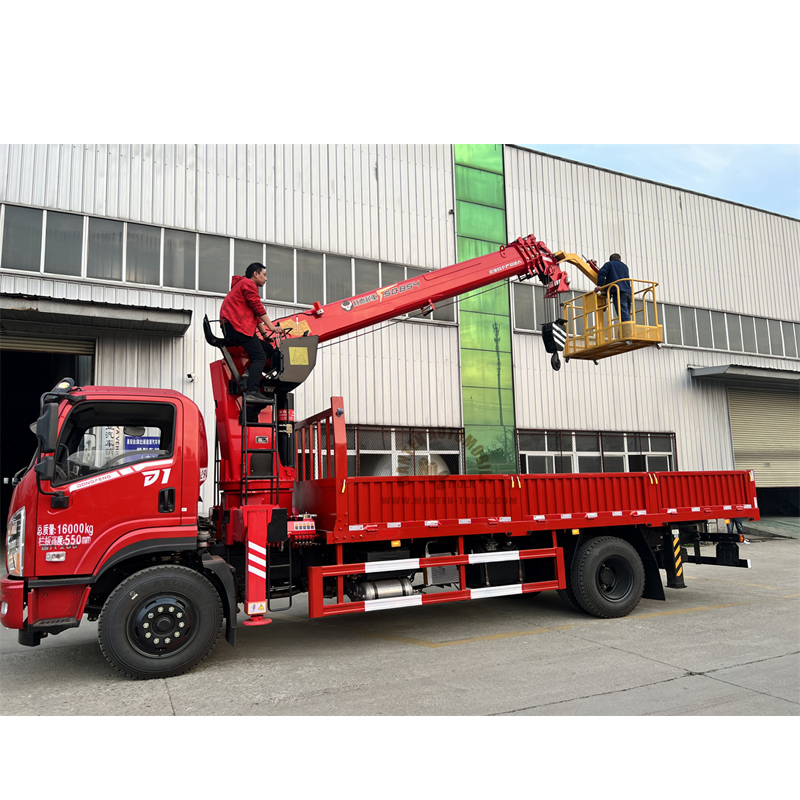

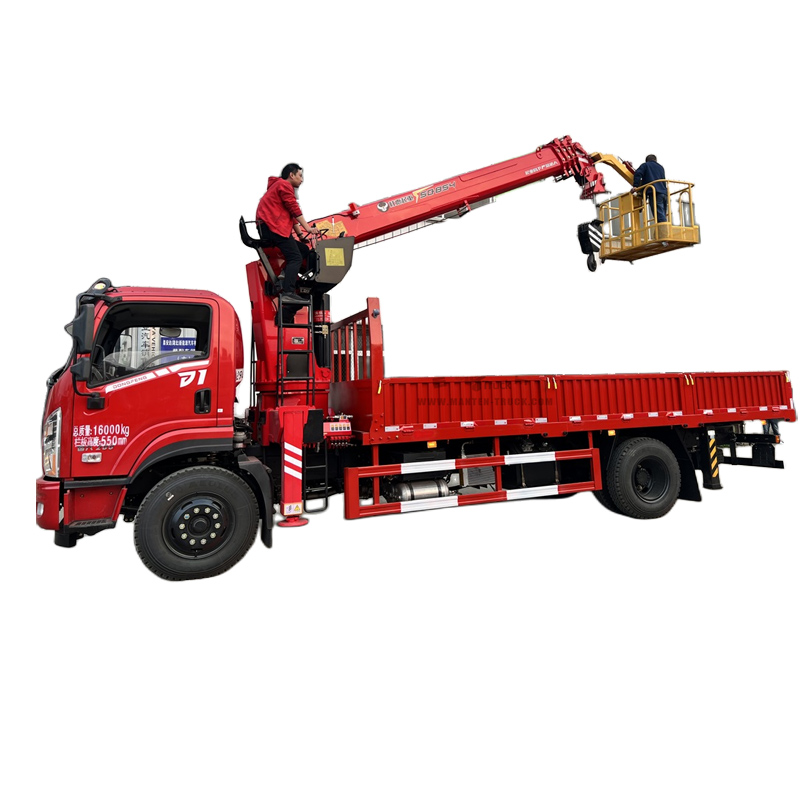

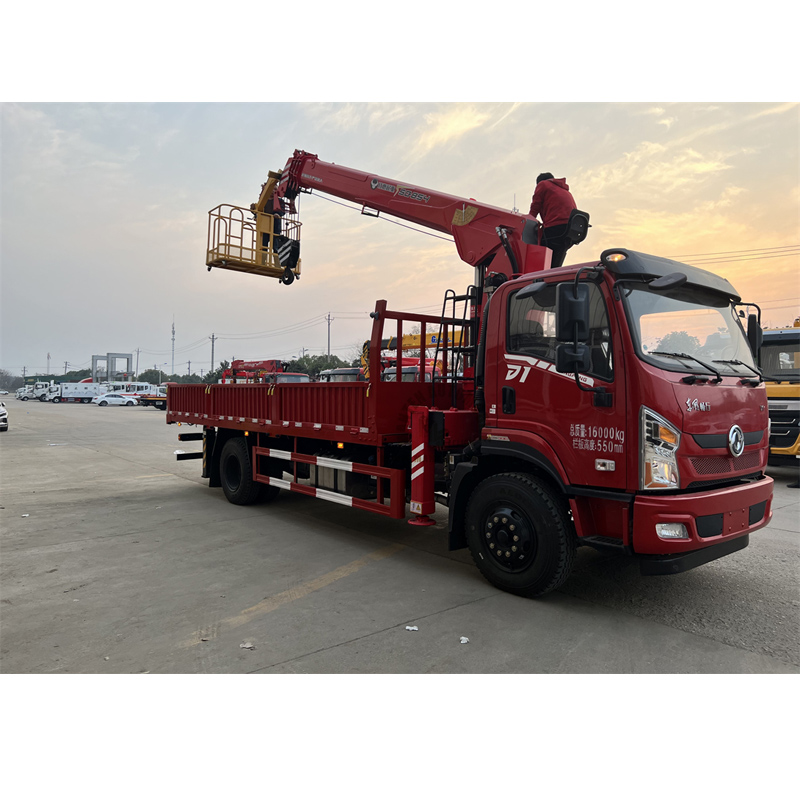

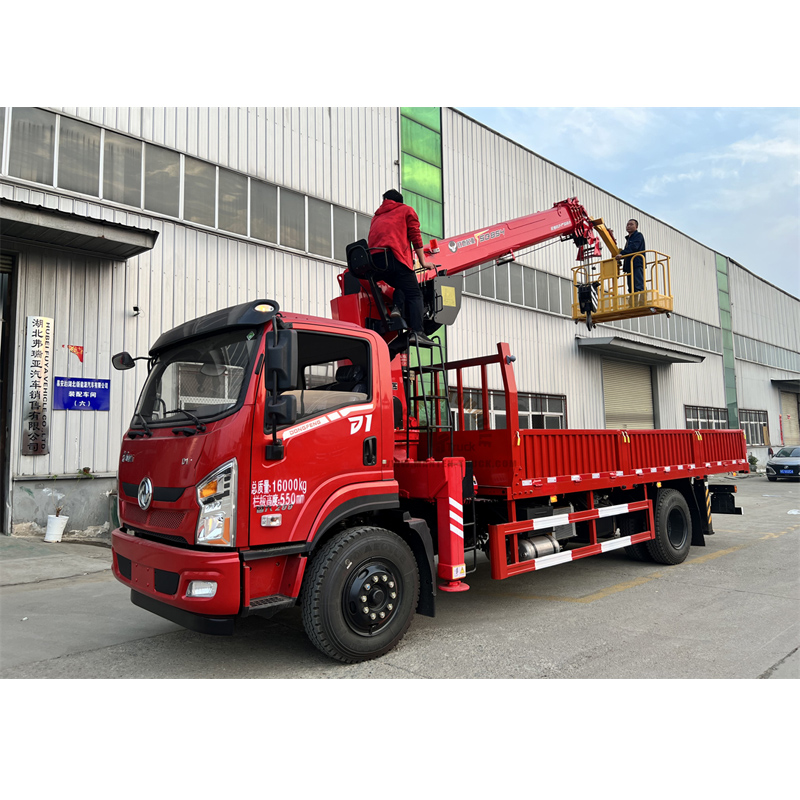

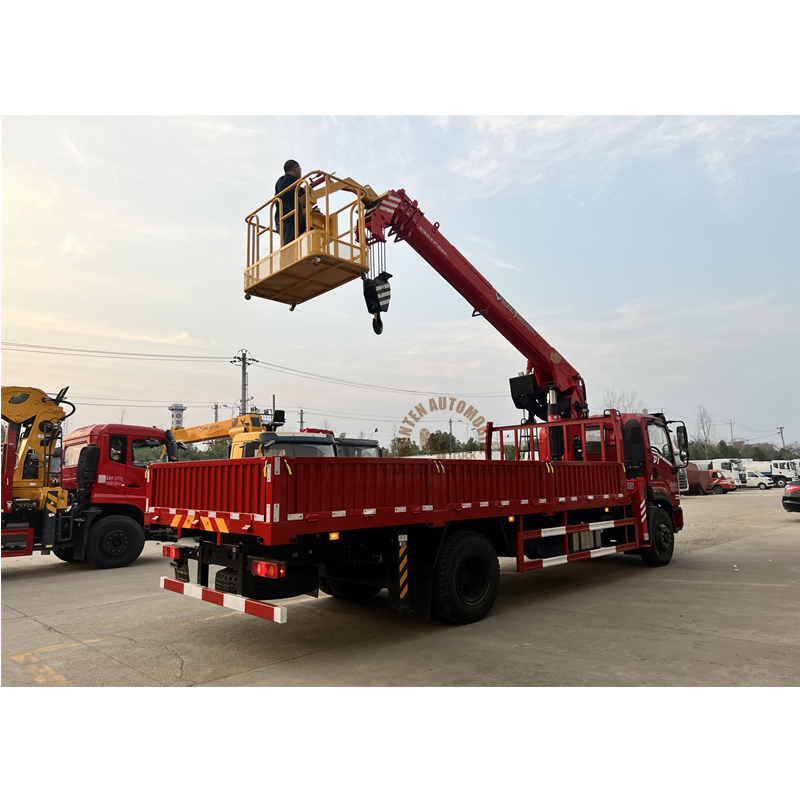

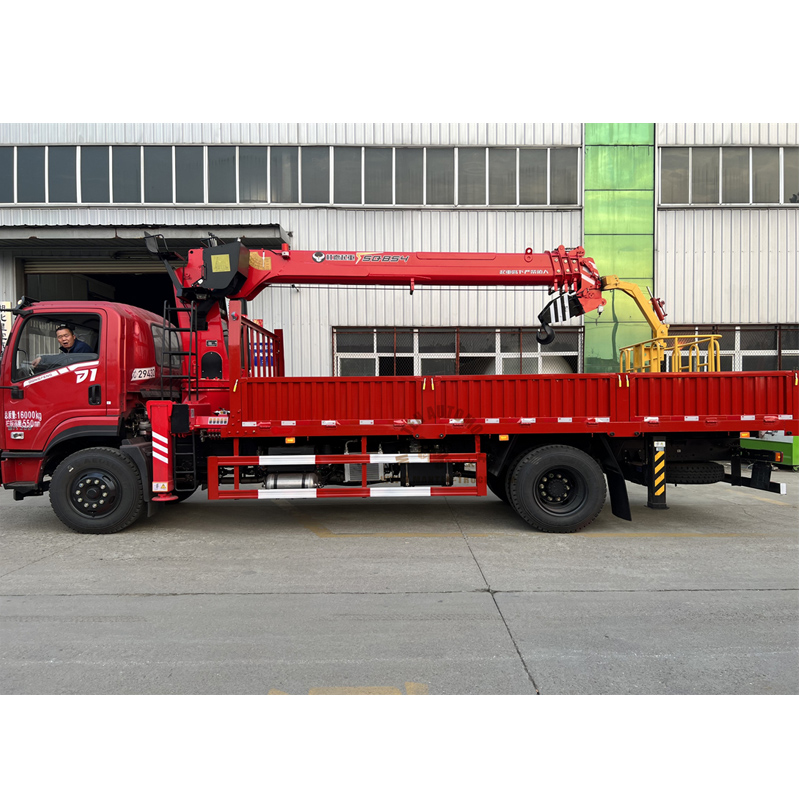

1. This Lifter crane truck adopts Dongfeng chassis ,Boom type is telescopic boom, Max. Loading Weight is 3.6ton ,Max lifting height is 10.8m with rotate basket.
2. The whole machine adopts finite element lightweight design, with light deadweight and small installation space; Compact and beautiful structure; Polygonal arm body section, with greater lifting capacity and strong bending and torsion resistance under the same amplitude.
3. The turntable is operated by a high position seat, which has a better working view and can be equipped with remote control.
4. Regenerative control and new sequential telescoping control system are adopted to reduce the telescoping pressure loss of the boom, improve the loaded telescoping capacity and the working efficiency of the whole machine.
5. The rotatable double stage double cylinder outrigger is adopted to improve the stability of the whole machine on the basis of improving the adaptability of the site.
6. Double reducers are used to drive slewing, which makes the slewing action more stable and powerful, and the braking effect is better; Upperworks hydraulic proportional valve has good inching performance and can perform compound actions, with high control comfort; The standard high-power radiator ensures that the oil temperature of the crane is not too high during long-term heavy load operation; Standard hydraulic torque limiting valve ensures that customers are more comfortable using the crane.
SPECIFICATION | ||
Truck Specification | ||
Product Name | 6.3tons DOONGFENG Lifter crane truck | |
Truck Manufacturer | MANTEN GROUP | |
Chassis Specification | ||
Chassis Brand | Dongfeng | |
Drive type | 4x2 | |
wheelbase | 3900mm | |
Fuel type of engine | Diesel | |
Engine | Brand | B190 33 |
Maximum horse power | 190hp | |
Emission standard | 3 | |
Gear box | Type | Fast 5T |
Tyres | Size | 825R16 |
Quantity | 6 | |
Upper body specification | ||
Crane Brand | Best Crane | |
Max. lifting capacity | 6.3ton | |
Max. working height | 12.8m | |
Boom sections | 3sections | |
Type of Crane | Telescopic boom | |
Bucket | Rotatable, with remote control | |
Rotation angle | 360° all rotation | |
Cargo box material | Carbon steel | |
Cargo box Thickness | bottom: 3mm, side: 1.5mm | |
Rear bumper | Carbon steel | |
Side Under Run | Carbon steel | |
Mud guard / Mud Flap | with Mudguard and rubber mud flap | |
Spare Wheel Bracket | 1piece | |
Light | Electrical system in accordance to GB standard, complete with light for tail, signal, reverse, nameplate light and, and side marker lights at both sides of truck, complete with reflective tape at two sides and rear of the truck. | |
Painting | 1 Coat of anticorrosive prime, 2 coats of final paint . Colour as request |
