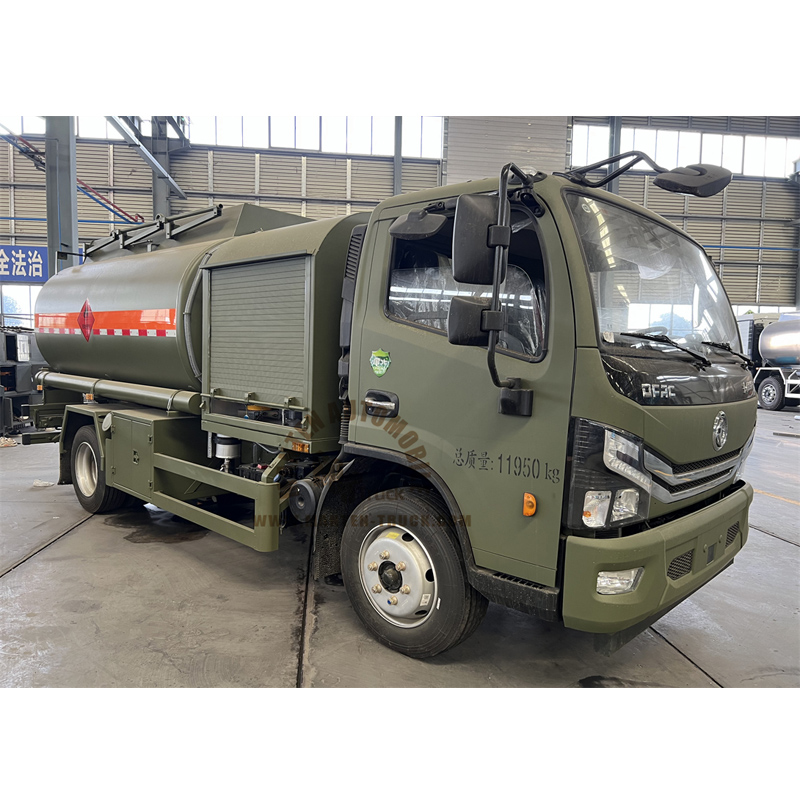

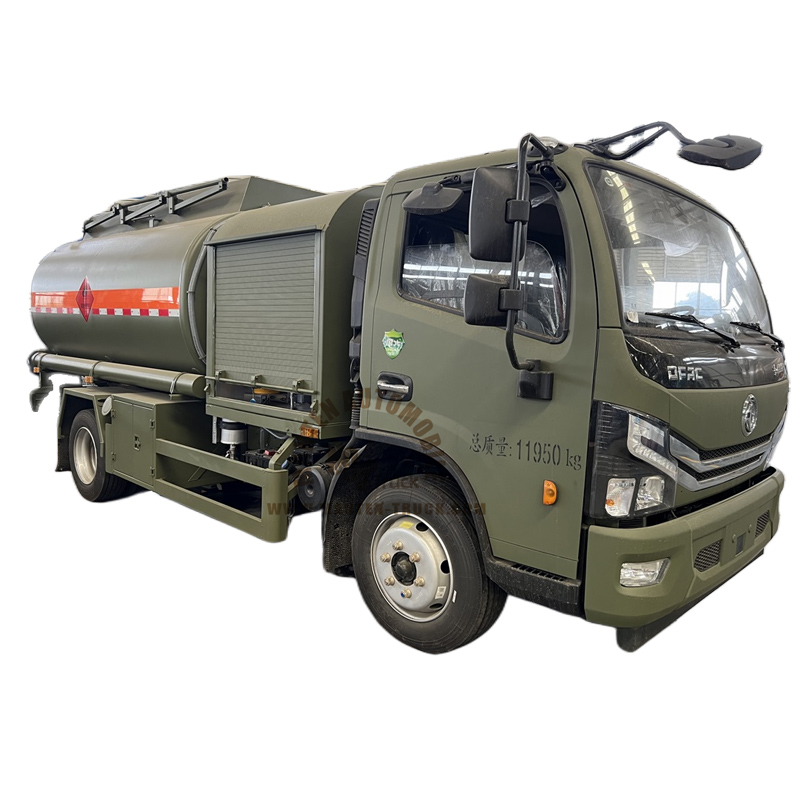

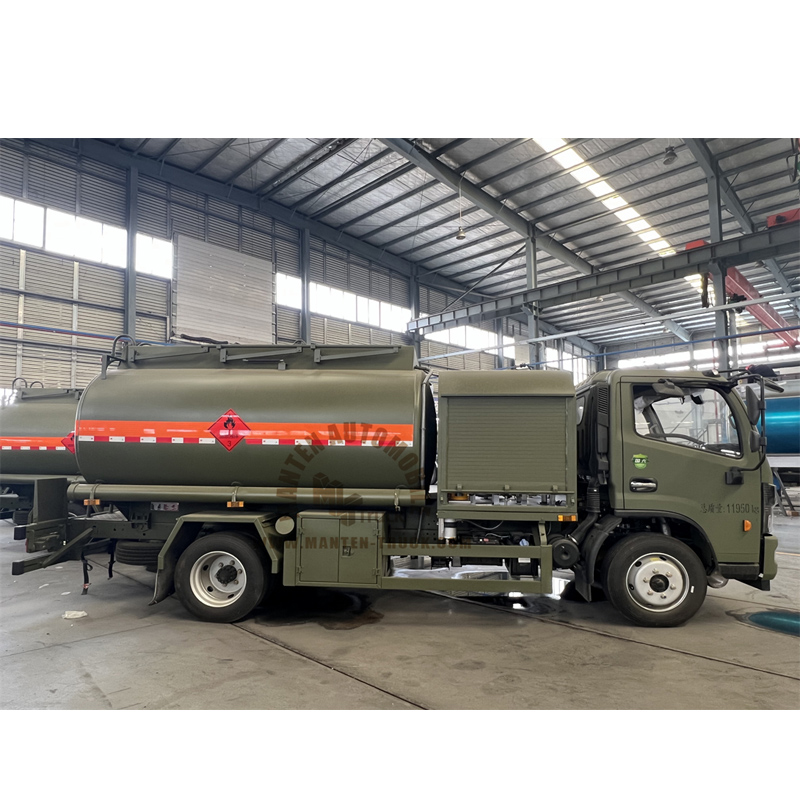

1. This Aircraft refueling truck adopts Dongfeng chassis, The tank is square and round, with a volume of 5 cubic meters, a single compartment.
2. The tank material is aluminum alloy 5182, with one aluminum alloy European standard manhole on the tank top with built-in breathing valve, manual aluminum alloy guardrails on both sides of the tank top, equipped with aluminum alloy back ladders.

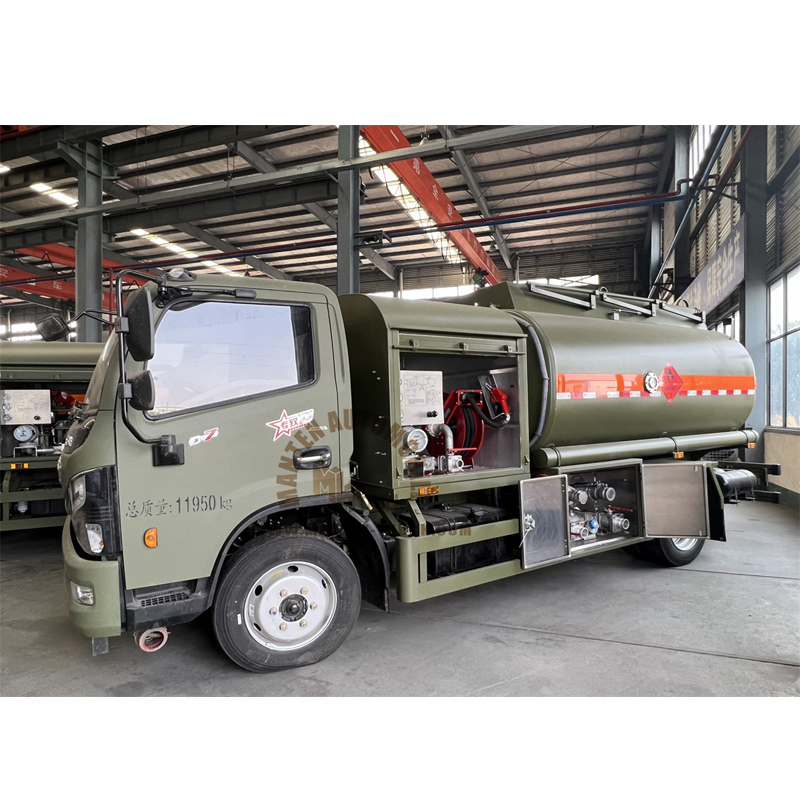

3. Function equippment:

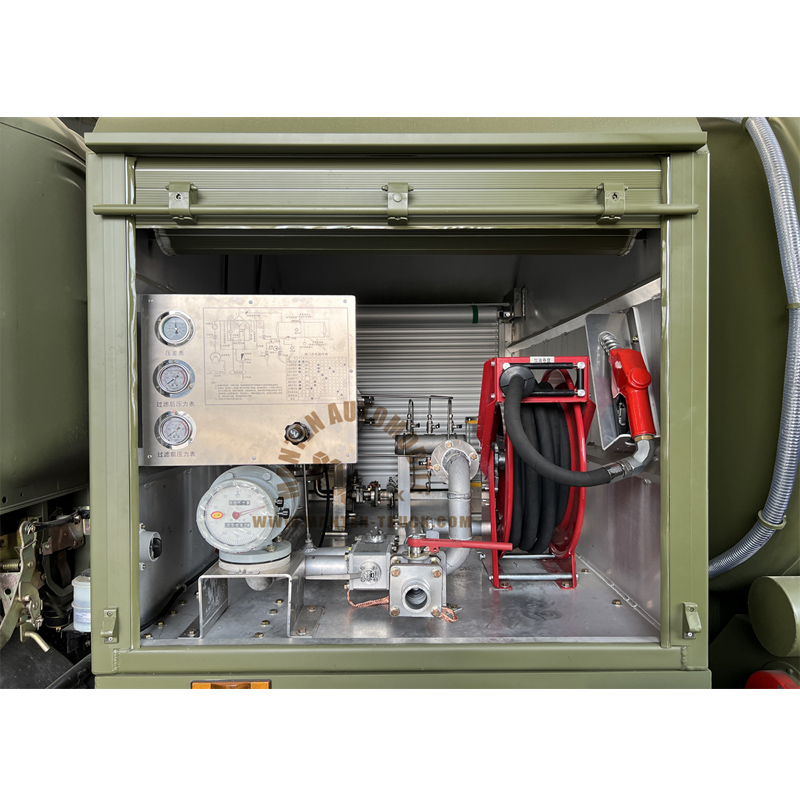

One set of explosion-proof lamp inside the operation cabinet (aluminum alloy),
one set of electrostatic reel outside the operation cabinet,
Refueling pump: Hangzhou Weilong self-priming centrifugal pump,
Flowmeter: Hefei Jingda instrument with 0.2 accuracy, diameter of 50 waist wheel flow rate,

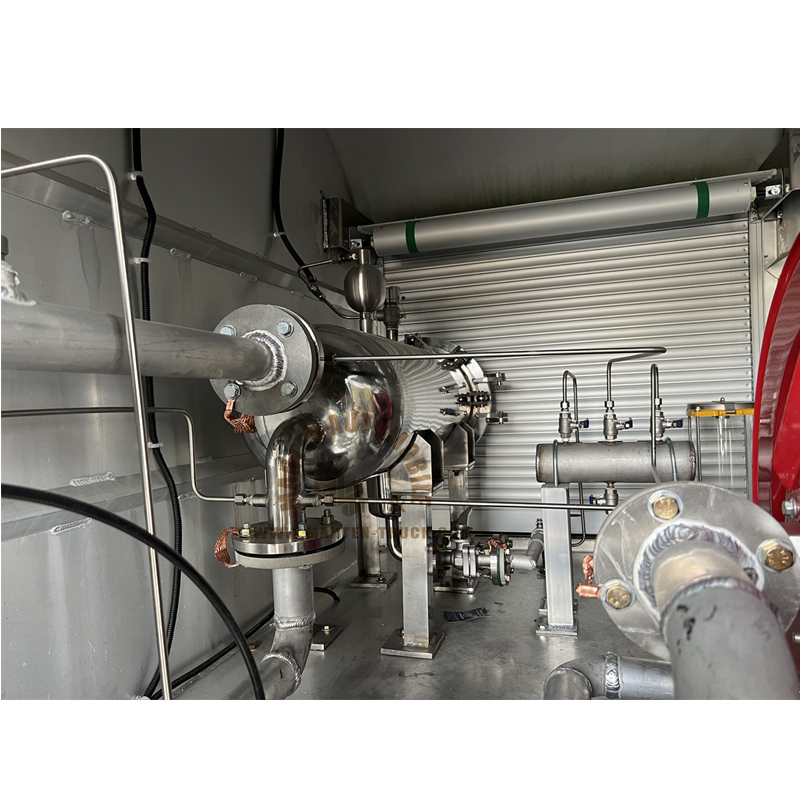

Filter separator: 7-core filtration (including 2 separation filters and 5 coalescence filters).
Gravity refueling method: 15m aviation kerosene special hose reel with aviation kerosene special gun,
Liquid level gauge: 10 inch aluminum alloy dial,
Operation control: integrated control system.
SPECIFICATION | ||
Truck Specification | ||
Product Name | 5000Liters Dongfeng Aircraft refueling truck | |
Truck Manufacturer | MANTEN GROUP | |
Chassis Specification | ||
Cabin | Single-rowcabin, LHD, A/C | |
Drive type | 4*2 | |
wheelbase | 3360mm | |
Fuel type of engine | Diesel | |
Engine | Model | Yuchai |
Maximum horse power | 120hp | |
Number of cylinders | 4 | |
Emission standard | Euro 3 | |
Gear box | Type | 5 forward &1 rear |
Tyres | Size | 825R16 |
Quantity | 6+1 spare tire | |
Upper body specification | ||
Fuel Tank | Capacity | 5m³/ 5000Liters/5CBM Water Aircraft refueling truck |
Tank Material | Made of aluminum alloy | |
Special function | Flowmeter | with |
Filter separator | with | |
Gravity refueling reel | Automatic reset reel | |
Liquid level meter | The stainless steel floating ball in the tank and the 10 inch aluminum alloy dial on the left side of the tank can clearly observe the current liquid volume in the tank | |
Oil Pump | Stainless steel self-priming centrifugal pump | |
Operating system | centralized control of independent control room. | |
Instrument indication | Includes pump inlet vacuum gauge, pump outlet pressure gauge, oil pump tachometer, filter differential pressure gauge, etc | |
The valve operation | Include the main power switch, lighting switch, emergency stop switch, oil pump speed regulating knob, refueling valve, circulating filter valve, sampling valve, and sea valve control combination switch |
