18m isuzu 4x2 telescopic boom aerial work platform truck

18m ISUZU 4x2 Telescopic Boom Aerial Work Platform Truck

1. This Aerial work platform truck adopts ISUZU FRR chassis ,Boom type is Telescopic boom, Max. operation height is 18m.Basket material is glass fiber reinforced plastic .

2. The boom is made of high-strength steel plate Baosteel 900 steel, which is compressive and torsion resistant, with excellent quality.

3. Computer controlled LCD can display arm length, working height and working range,Real time display of vehicle operation conditions, automatic amplitude limiting, dangerous work alarm, excellent safety performance.

4. Main supporting hydraulic and electrical components: load sensitive proportional valve, balance valve, controller, etc. are imported parts.

5. The outrigger operation box is equipped with lights to facilitate work at night, and the vehicle level is equipped to ensure the vehicle level and safety.

6. Four in one operation: low position operation, middle position operation, high position operation, Remote control operation. Different construction methods correspond to different operation methods, meeting all operation methods.

As a professional aerial platform truck supplier, Manten provides high altitude operation truck and aerial lift bucket truck to meet our customers needs.

Specification of 18m ISUZU 4x2 Telescopic Boom Aerial Work Platform Truck

Truck Specification
Product Name18M Telescopic boom ISUZU 4x2 Aerial work platform truck
Truck ManufacturerMANTEN GROUP
Chassis Specification
Chassis BrandISUZU FRR
Drive type4x2,Single cabin
Fuel type of engineDiesel
Maximum horse power190HP
Emission standard5
Gear boxTypeMLD 6T

Upper body specification
Working conditionMaximum operating height18m
Boom Type3Sections telescopic boom
Outrigger typeOutrigger typeFront V Rear H type. Controlled independently
BasketRated loading weight200kgs
Bucket materialFRP marerial
Operation systemOperation4 operation mode: Electrical operation of working platform ,ground remote control ,controller in the bucket,and emergency lever.
Control systemElectro hydraulic proportional control system and optional load proportional system can realize double action synchronization and stepless speed regulation
Leveling systemHydraulic automatic leveling
Security configurationAutomatic interlocking device for up and downFor locking up and down the truck to prevent the risk of misoperation
Basket360 degree rotation
Horizontal functionReal time display
Emergency electric emergency pumpWhen the engine and main pump failure, the operator can be sent back to the ground.
Emergency stop deviceFor emergency stop operation
Night safety warning deviceThere are engineering flashing lights and lights on vehicle.
Ignition and flameout of engineThe engine can be ignited and flameout controlled at the turntable and platform
Real time communicationThere is wireless intercom between the platform and the vehicle

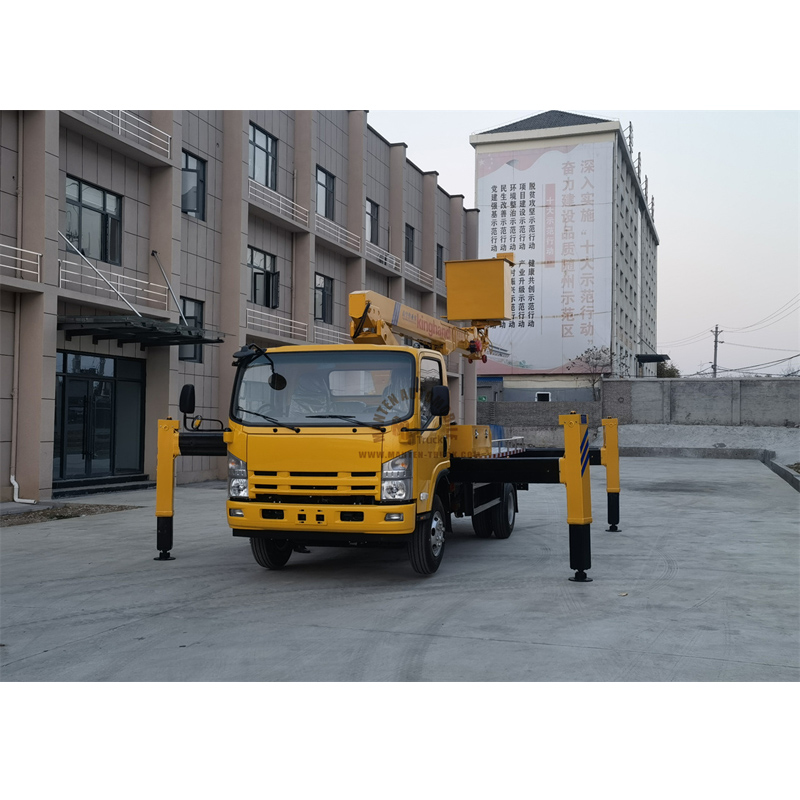

18m ISUZU 4x2 Telescopic Boom Aerial Work Platform Truck Gallery
