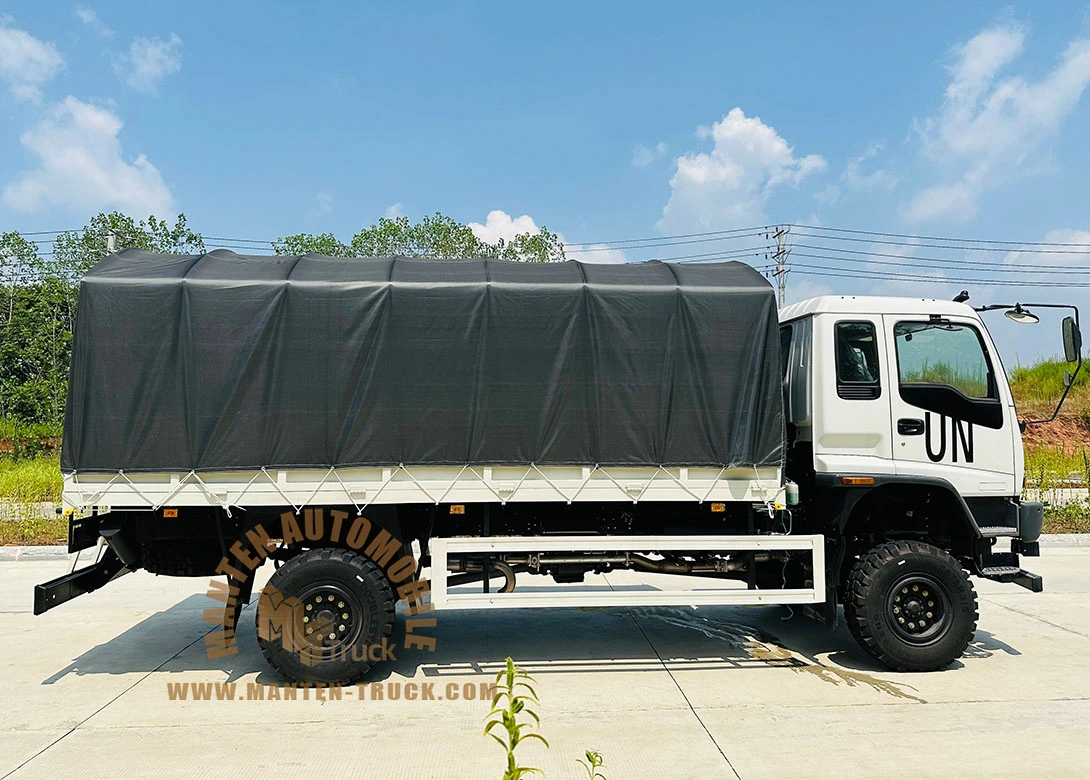

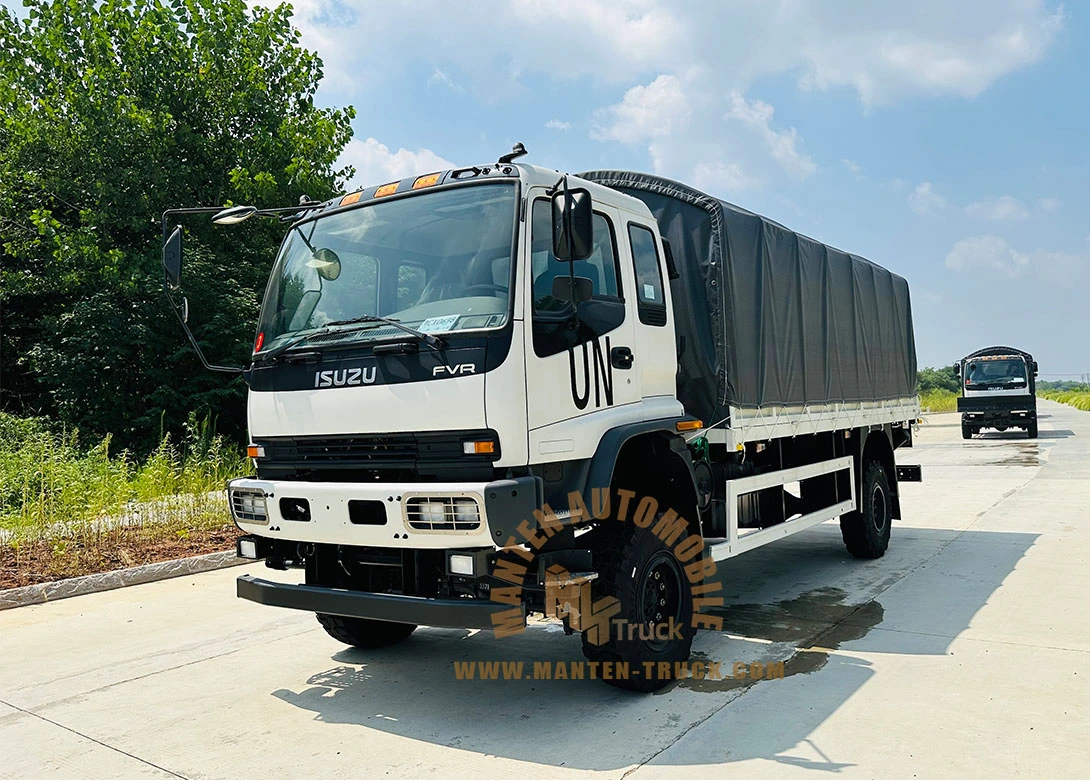

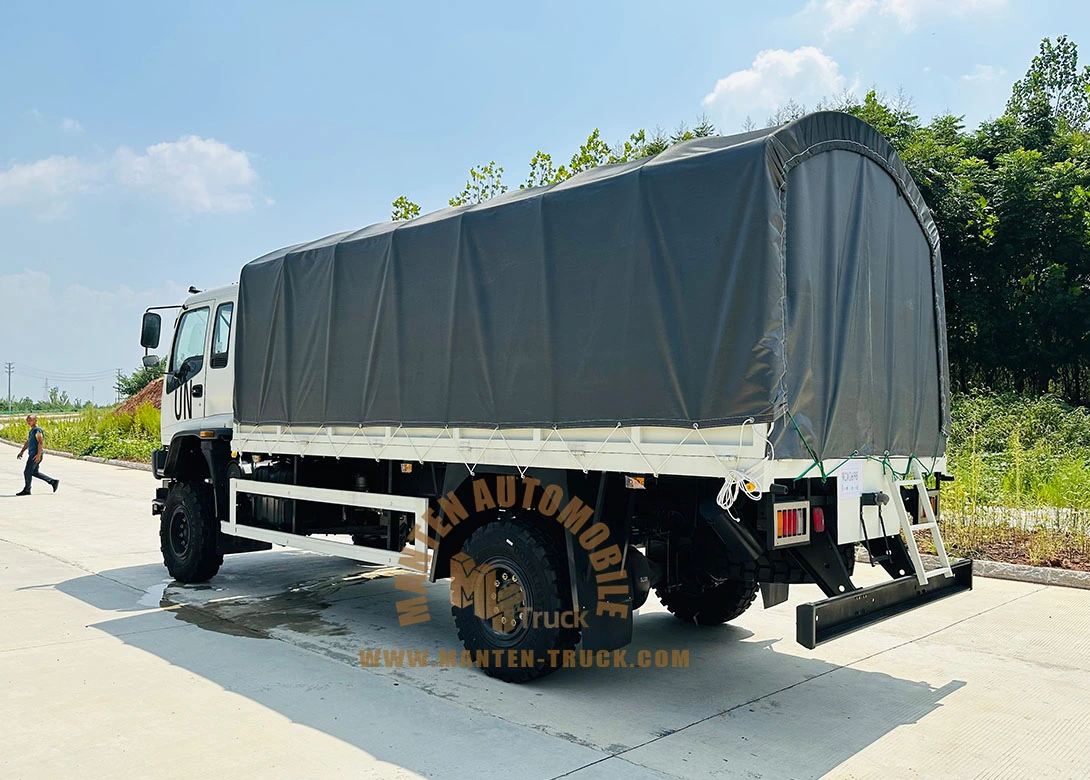

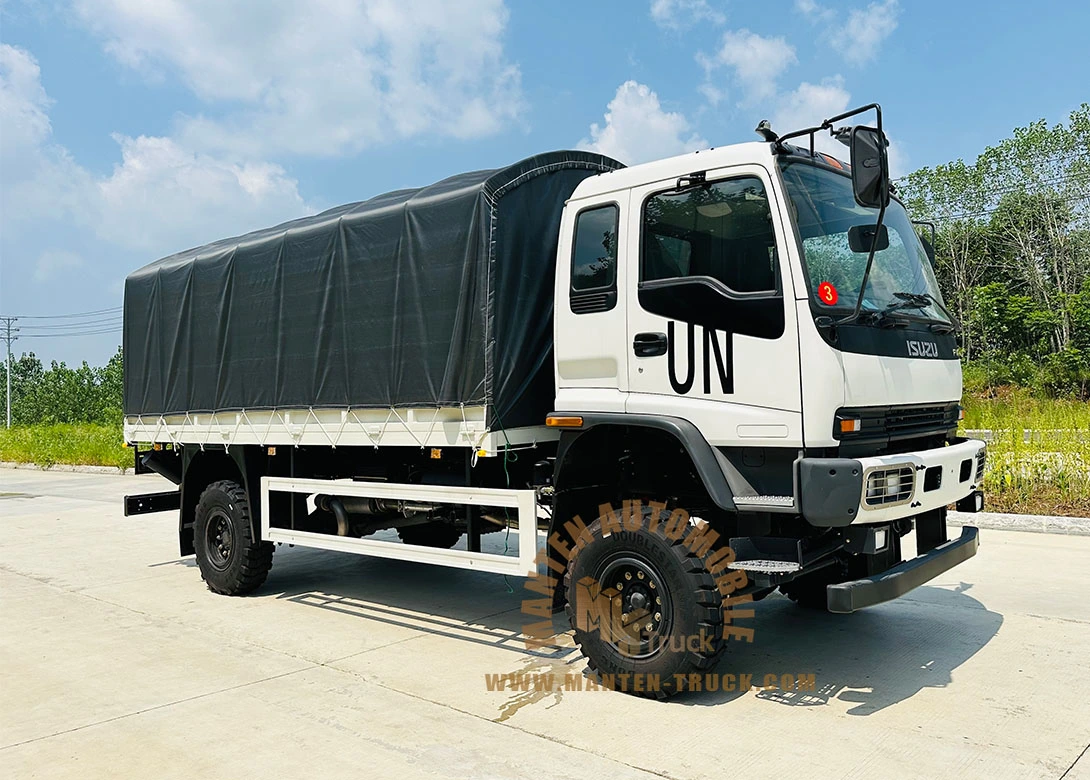

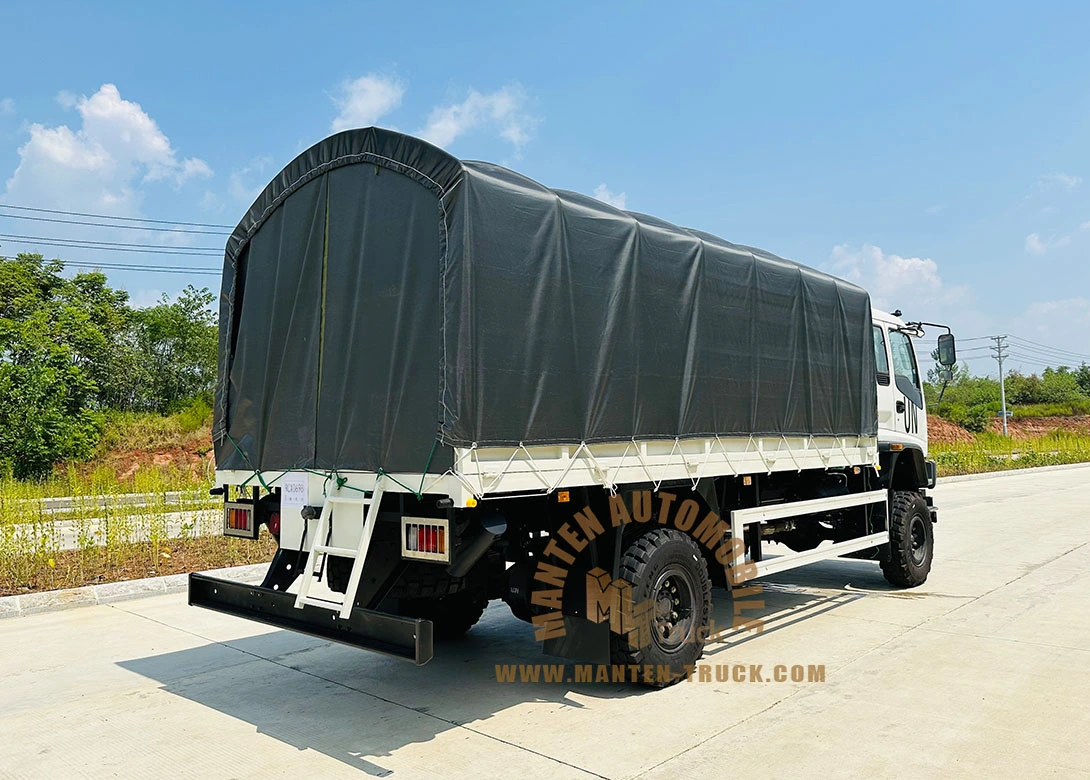

1. This Personnel Transport Truck adopts ISUZU chassis, Max total mass is 25000kg, equipped with ABS and Air Conditioner.
2. The Capacity is 25 person, having a large seating space and The vehicle is very solid.
3. Equipped with Rear Fender, Tool box, Spare tire carrier, Canvas canopy, equipped with Foldable chairs, The rear cargo box is locked and can be
opened.
Truck Specification | |||||
Product Name | ISUZU Personnel Transport Vehicle | ||||
Truck Manufacturer | MANTEN GROUP | ||||
Overall dimensions (L×W×H) | 8000x2500x3450mm | ||||
TECHNICAL SPECIFICATION | |||||
Main specification | Overall dimension(L*W*H) | about 8000x2500x3450mm(mm) | |||
Cabin | ISUZU FTR cab with air-conditioning | ||||
Drive model | 4×4, left hand drive | ||||
GVW | 16000kg | ||||
Chassis | Chassis brand | ISUZU | |||
Wheel Base(mm) | 4700 | ||||
Front/rear wheel track (mm) | 1960/1855mm | ||||
Approach/Departure Angle | 15/17° | ||||
Tire size | 10.00R20 | ||||
Tire number | (6+1)spare tire | ||||
Emission standard | Euro 5 | ||||
Transmission model | Isuzu MLD six speed transmission | ||||
Front Axle Loading | 6.3Ton | ||||
Rear Axle Loading | 13Ton | ||||
Engine | Model | 4HK1-TC50 | |||
Horse Power | 205HP | ||||
Maximum torque | 650N.m | ||||
Displacement(L) | 5.193L | ||||
Off Road Performance | Minimum ground clearance | 300mm | |||
Van body structure parameters | |||||
Van body dimensions | Length | 5300mm | |||
Width | 2350mm | ||||
Height | 362+650mm | ||||
Van body Construction (Floor) | Floor frame(Angle steel) | 100*100*7T | |||
Main Beam(Rectangle steel tube) | 150*75*3.2T | ||||
Cross Beam(Rectangle steel tube) | 100*50*2.3T | ||||
1.6T | 3.2T | ||||
Front&Side Gate | Prees steel | 1.6T | |||
Rear Gate | Prees steel | 1.6T | |||
Front&Side Stake | Stake Board(Hard Wood) | 20T | |||
Stake Post(Press steel) | 1.6T | ||||
Awning Pipe(Steel pipe) | 27.2mm | ||||
Accessories | Rear Fender | 1set | |||
Tool box | 1set | ||||
Spare tire carrier | 1set | ||||
Canvas canopy | 1 set (Color can be customized) | ||||
Passenger seats | hard wood,material can be customized |
