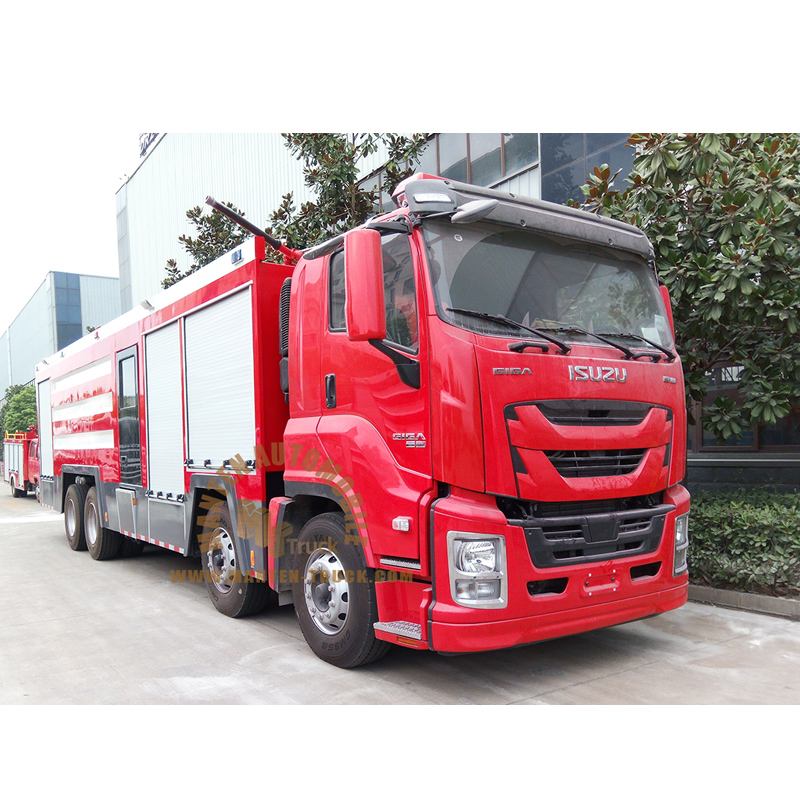

1. This ISUZU GIGA heavy 15ton dry powder fire truck adopts ISUZU GIGA chassis , 8,000 liters to 10,000 liters water tank, 2ton powder tank, CB20.10/30.60-XZ fire pump, fire monitor and fire fighting equipment.
2. This ISUZU GIGA heavy 15ton dry powder fire truck could be equipped with different fire monitor, manual control or electronic wireless control. The fire monitor water range is more than 60 meters.
3. This ISUZU GIGA heavy 15ton dry powder fire truck could be equipped with different fire pump (CB10/60 low pressure pump or CB20.10/30.60 medium and low pressure pump ). The max flux is 3600 liters at 10 bar.
3. The water tank material of ISUZU GIGA heavy 15ton dry powder fire truck can be Q235B carbon steel or stainless steel.
SPECIFICATION | ||
Truck Specification | ||
Product Name | ISUZU GIGA heavy 15ton dry powder fire truck | |
Truck Manufacturer | MANTEN GROUP | |
Overall dimensions (L×W×H) | About 10500*2500*3500mm | |
Chassis Specification | ||
Cabin | Isuzu VC61 GIGA cabin, crew cabin, with A/C | |
Drive type | 6*4 | |
wheelbase | 4575mm+1370mm | |
Fuel type of engine | Diesel | |
Engine | Model | 6WG1-TCG or 6UZ1-TCG series |
Maximum horse power | 350hp,380jp, 420hp, 480hp | |
Number of cylinders | 6 | |
Emission standard | Euro 5 | |
Gear box | Type | FAST, Manual, 12 forwards and 2 reverse |
Tyres | Size | 315/80R22.5,12.00R22.5 |
Quantity | 10+1 spare tire | |
Upper body specification | ||
Water Tank | Capacity | 8,000 liters to 10,000 liters |
Tank Material | 5mm Q235 Carbon steel or stainless steel | |
Dry powder tank | Capacity | 250kg, 500kg, 1000kg, 2000kg, 3000kg |
Design pressure | 1.4Mpa | |
Function | Equipped with crew cabin, can sit 2+4 firefighters. | |
Equipped with fire monitor, manual control or electronic wireless control. The fire monitor water range is more than 60 meters. | ||
Equipped with (CB10/60 low pressure pump or CB20.10/30.60 medium and low pressure pump ). The max flux is 3600 liters at 10 bar. | ||
Could be equipped with fire fighting equipment like as fire gun, fire hose, high pressure DN25 hose reel or others. | ||
It is especially suitable for fighting flammable liquids ,combustible gas and some electrical initial fire. |
