100cbm LPG Filling Plant

1. Manten 100cbm LPG filling plant. Tank material can be carbon steel Q345R, Q370R, SA516, 16MnDR.

2. The LPG storage tank safety accessories: flange manhole, pressure gauge, thermometer, full open safety valve, magnetic flap level gauge, etc;

3. Tank performed MT, UT, RT test. heat treatment, water pressure and air pressure test, on-site inspection by the Technical Supervision Bureau, the pressure vessel inspection certificate was issued, and the external derusting and painting processes were completed.

4. Equipped with pump motor, compressor, gas leak detector, refilling electric scale, sun-shield, water cooling system intalled on the top of tank, pipeline system completely supply and full set of safety accessories.

Specification Of 100cbm LPG Filling Plant

Tank Specification
Volume of Tank100000liters
Filling Weight50000kg
Tank Weight20410kg
Thickness of Shell (mm)18mm
Thickness of Endplate (mm)18mm
Tank Diameter (mm)3200mm
External Dimensions (mm) (length x width x height)13866*3132*37220mm
Material of Tank and Main Pressure PartsCarbon Steel Q345R
Filling MediumLiquefied Petroleum Gas ( Propane)
Design Pressure1.77 MPa
Corrosion Allowance1 mm
Medium Density420-590 kg/ cbm
Manufacturing Standard: Pressure vessels, Supervision Regulation on Safety Technology for Stationary Pressure Vessels of China.
Other Equipment
LPG pumpCorken brand, 3 sets
MotorABB 5.5kW 380V, 3sets
LPG filling scaleElectric filling scale for cylinders 3-150kgs 5units
Inflatable gun3 sets, can be equipped with professional interface,according to user requirements
Shockproof hose2 liquid phase and 2 gas phase, stainless steel
Liquid level gauge
Magnetic flip type and floating ball type
Pressure gauge
Spray deviceDN15 galvanized pipe surrounds the tank body for a week. When the temperature is high, the spray can be adjusted automatically to effectively reduce the temperature
Sun-shieldit is made of 4mm thick aluminum plate to prevent the storage tank from overheating.
Pipes, valves, flanges and standard parts shall be provided according to the actual situation.


100cbm LPG Filling Plant Gallery

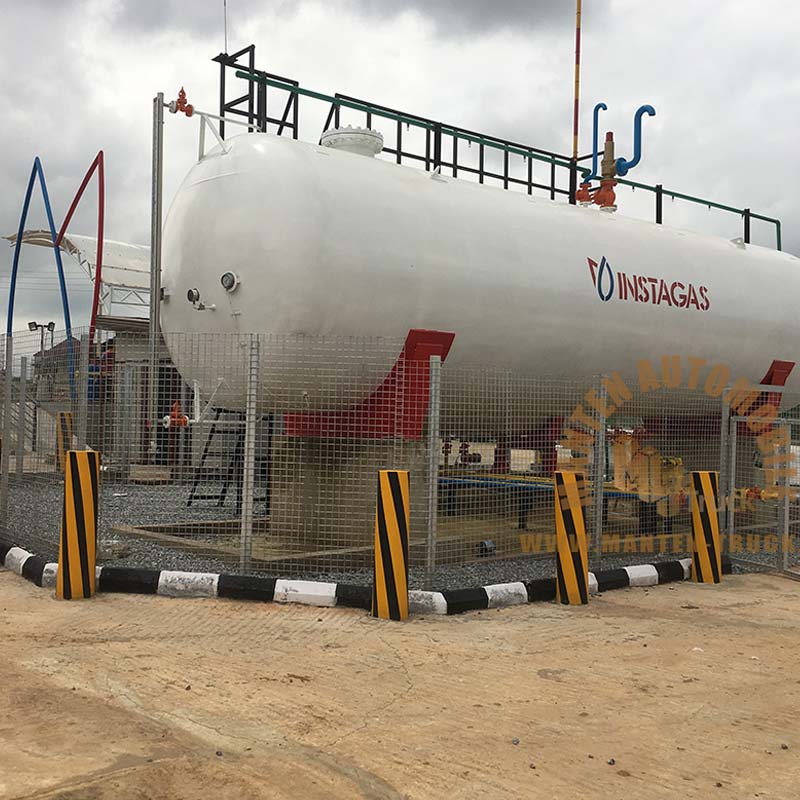

lpg filling plant
lpg gas refilling plant
lpg gas filling plant
setting up lpg filling plant
lpg cylinder filling plant cost
