20cbm LPG Tank Skids Asme Standard

1. Manten 20cbm LPG tank skids asme standard. Tank material can be carbon steel SA516

2. Tank after manufactured will marked the ASME U stamp. Tank performed MT, UT, RT test. heat treatment, water pressure and air pressure test, on-site inspection by the Technical Supervision Bureau, the pressure vessel inspection certificate was issued, and the external derusting and painting processes were completed.

3. The gas return line will be designed on the liquid phase pipeline, and a safety valve will be installed on the pipeline. Once the pressure in the pipeline is too high, the safety valve will jump open and leak off too much liquefied gas propane, thus ensuring the overall safety.

4. Standard configuration of LPG skid station: hydrocarbon pump, motor, pulley, base, alarm, frequency converter, control box, spray water pipe, float level gauge, pressure gauge, thermometer, safety valve, safety return valve, filter, check valve, ball valve, stop valve, pipeline safety valve, unloading pipe, shockproof pipe, flange, metal gasket, 8.8 bolts, electronic filling scale, pipeline, lower rack

Specification Of 20cbm LPG Tank Skids Asme Standard

Tank Specification
Volume of Tank20000liters
Filling Weight10000kg
Tank Weight6480kg
Thickness of Shell (mm)14mm
Thickness of Endplate (mm)16mm
Tank Diameter (mm)1900mm
External Dimensions (mm) (length x width x height)7402*1928*2508mm
Material of Tank and Main Pressure PartsSA516 ASME standard
Filling MediumLiquefied Petroleum Gas ( Propane)
Design Pressure1.77 MPa
Corrosion Allowance1 mm
Medium Density420-590 kg/ cbm
Manufacturing Standard: Pressure vessels, Supervision Regulation on Safety Technology for Stationary Pressure Vessels of China.
Other Equipment
LPG pumpYQB15-5, 1 set
Motor5.5kW 380V, 1 set
LPG dispenserDouble nozzle dispenser refilling
Inflatable gun3 sets, can be equipped with professional interface,according to user requirements
LPG compressor
lpg compressor MT 0.8-16
Shockproof hose2 liquid phase and 2 gas phase, stainless steel
Liquid level gauge
Magnetic flip type and floating ball type
Pressure gauge
Spray deviceDN15 galvanized pipe surrounds the tank body for a week. When the temperature is high, the spray can be adjusted automatically to effectively reduce the temperature
Sun-shieldit is made of 4mm thick aluminum plate to prevent the storage tank from overheating.
Pipes, valves, flanges and standard parts shall be provided according to the actual situation.

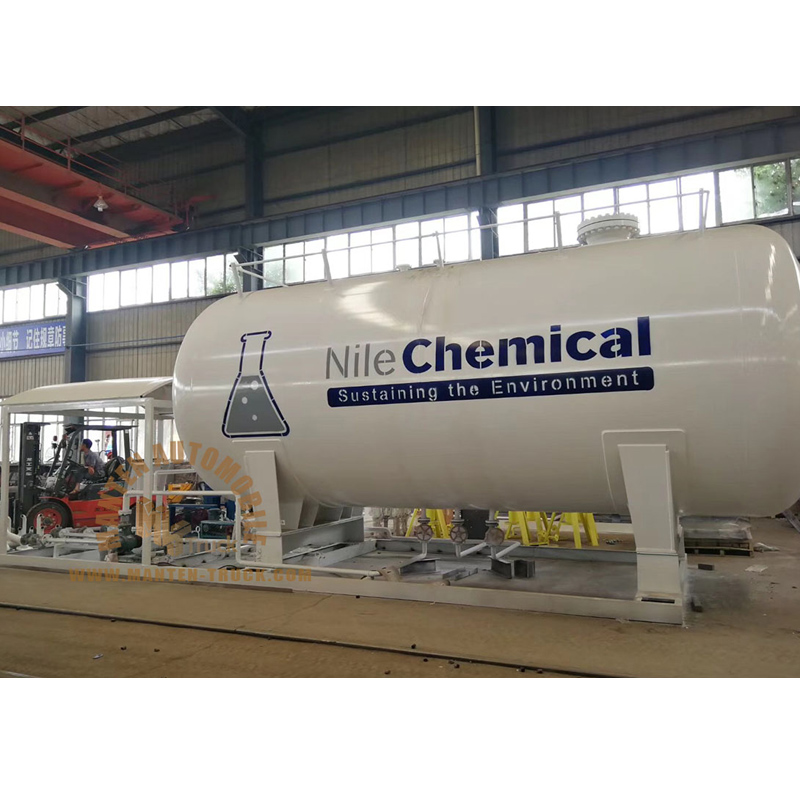

20cbm LPG Tank Skids Asme Standard Gallery
