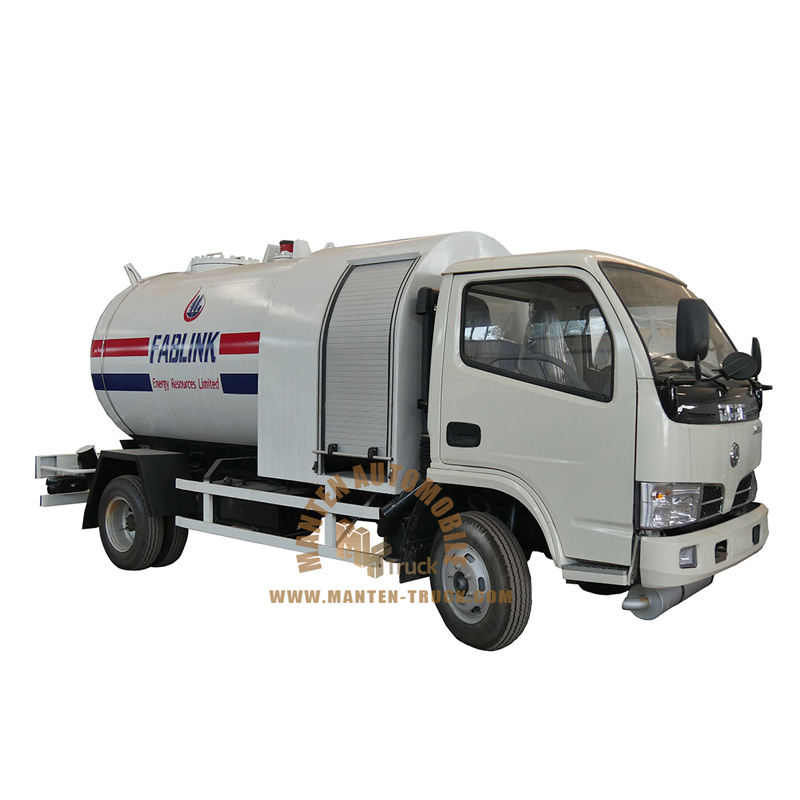

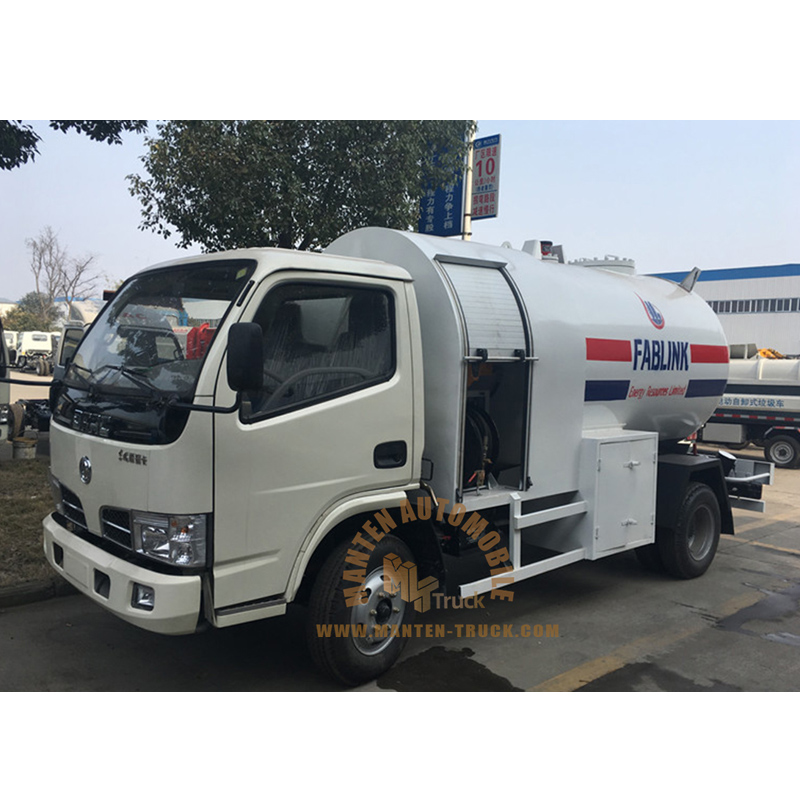

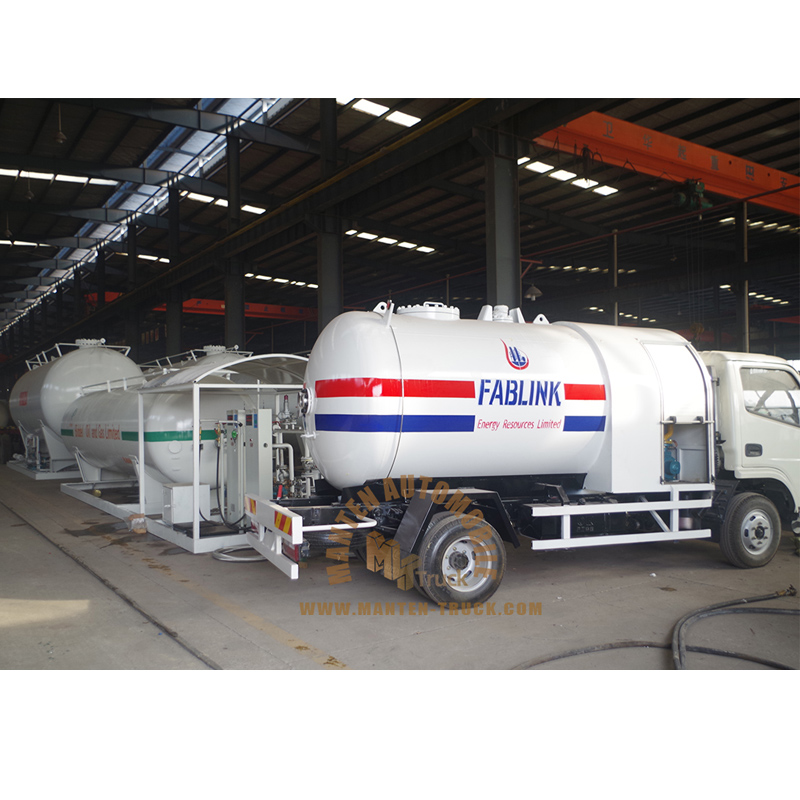

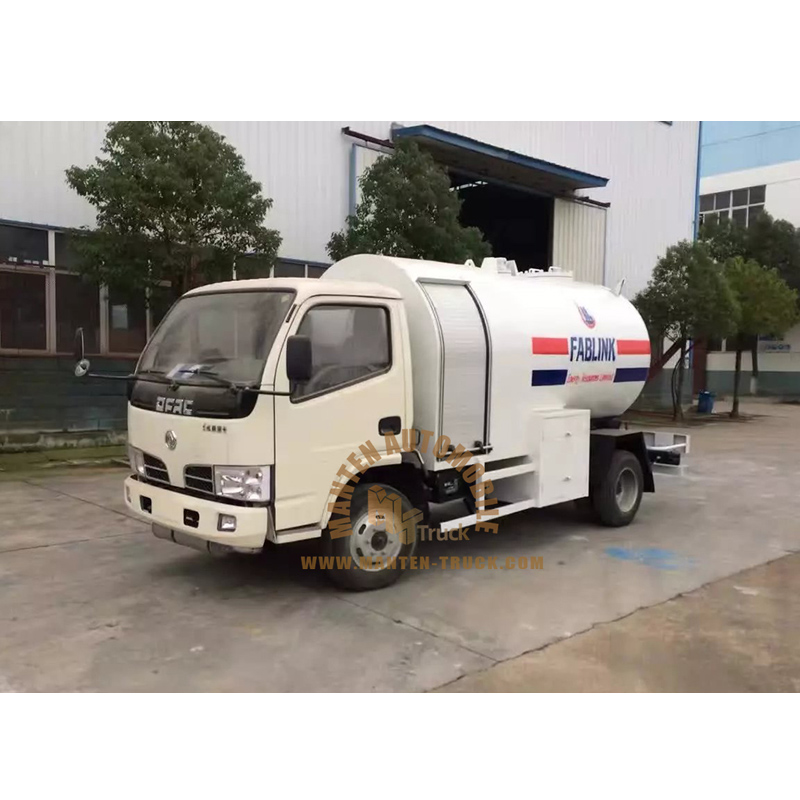

1. This LPG botail, truck brand is Dongfeng, 4x2 drive model. 6wheelers.
2. Tank material can be Q345R Q370R, SA516. Thickness and endplate is 10mm.
3. Loading volume is 5500liters, it can use for propane refilling to cylinders. The tank installed with Emergency Cut-off Valve, Safety Valve, Ball Valve, Liquid level meter, Pressure gauge, Temperature Gauge, 2 Valve Boxes in both sides.
4. The refilling system installed LPG vane pump, and liquid flow meter and retractable reel refilling hose and nozzle.
SPECIFICATION | ||
Truck Specification | ||
Product Name | Dongfeng 4x2 5500liter lpg refilling bobtail | |
Truck Manufacturer | MANTEN GROUP | |
Overall dimensions (L×W×H) | 5995*2095*2600mm | |
Chassis Specification | ||
Cabin | Dongfeng,LHD, A/C | |
Drive type | 4*2 | |
wheelbase | 3360mm | |
Fuel type of engine | Diesel | |
Engine | Model | CY4102 |
Maximum horse power | 95hp | |
Number of cylinders | 4 | |
Emission standard | Euro 3 | |
Gear box | Type | WLY535 5 forward &1 rear |
Tyres | Size | 7.00-16 |
Quantity | 6+1 spare tire | |
Upper body specification | ||
LPG Tank | Capacity | 5500liter/5.5cbm/5.5m3/ lpg refilling bobtail |
Tank Material | Q345R high tension steel, 10mm Thick Tank Body. | |
Tank Specification | Designed Pressure: 1.66Mpa Filling Ratio: 0.55 ton/M3 Working Temperature: under 50 centi-degree Corrosion Allowance: 1mm | |
Main Accessories | Emergency Cut-off Valve, Safety Valve, Ball Valve, Liquid level meter, Pressure gauge, Temperature Gauge, 2 Valve Boxes in both sides. LPG flow meter with refilling hose. | |
Specification of dispenser | ||
Standard | Pressure vessels, Supervision Regulation on Safety Technology for Stationary Pressure Vessels |
