24m isuzu 4x2 telescopic boom high altitude working vehicle

24m ISUZU 4x2 Telescopic Boom High-altitude Working Vehicle

1. This High-altitude working vehicle adopts ISUZU FRR chassis ,Boom type is 4 Sections telescopic boom, Max. operation height is 24m.Basket materail is aluminium alloy.

2. The boom is made of high-strength steel plate Baosteel 900 steel, which is compressive and torsion resistant, with excellent quality.

3. Computer controlled LCD can display arm length, working height and working range,Real time display of vehicle operation conditions, automatic amplitude limiting, dangerous work alarm, excellent safety performance.

4. Main supporting hydraulic and electrical components: load sensitive proportional valve, balance valve, controller, etc. are imported parts.

5. The outrigger operation box is equipped with lights to facilitate work at night, and the vehicle level is equipped to ensure the vehicle level and safety.

6. Four in one operation: low position operation, middle position operation, high position operation, Remote control operation. Different construction methods correspond to different operation methods, meeting all operation methods.

Get the best deals on top-quality aerial platform truck for sale from our reliable supplier. Our trucks are built to last and can handle a variety of applications, from maintenance and repair to inspection and construction. Browse our inventory today and find the perfect aerial platform truck for your business needs.

Specification Of 24m ISUZU 4x2 Telescopic Boom High-altitude Working Vehicle

Truck Specification
Product Name24M  Telescopic boom ISUZU 4x2 High-altitude working vehicle
Truck ManufacturerMANTEN GROUP
Chassis Specification
Chassis BrandISUZU
Drive type4x2,Single cabin
Fuel type of engineDiesel
Maximum horse power190HP
Emission standard5
Gear boxTypeMLD 6T

Upper body specification
Working conditionMaximum operating height24m
Boom Type4Sections telescopic boom
Outrigger typeOutrigger typeFront V Rear H type. Controlled independently
BasketRated loading weight200kgs
Bucket materialAluminium alloy
Operation systemOperation4 operation mode: Electrical operation of working platform ,ground remote control ,controller in the bucket,and emergency lever.
Control systemElectro hydraulic proportional control system and optional load proportional system can realize double action synchronization and stepless speed regulation
Leveling systemHydraulic automatic leveling
Security configurationAutomatic interlocking device for up and downFor locking up and down the truck to prevent the risk of misoperation
Basket360 degree rotation
Horizontal functionReal time display
Emergency electric emergency pumpWhen the engine and main pump failure, the operator can be sent back to the ground.
Emergency stop deviceFor emergency stop operation
Night safety warning deviceThere are engineering flashing lights and lights on vehicle.
Ignition and flameout of engineThe engine can be ignited and flameout controlled at the turntable and platform
Real time communicationThere is wireless intercom between the platform and the vehicle


24m ISUZU 4x2 Telescopic Boom High-altitude Working Vehicle Gallery

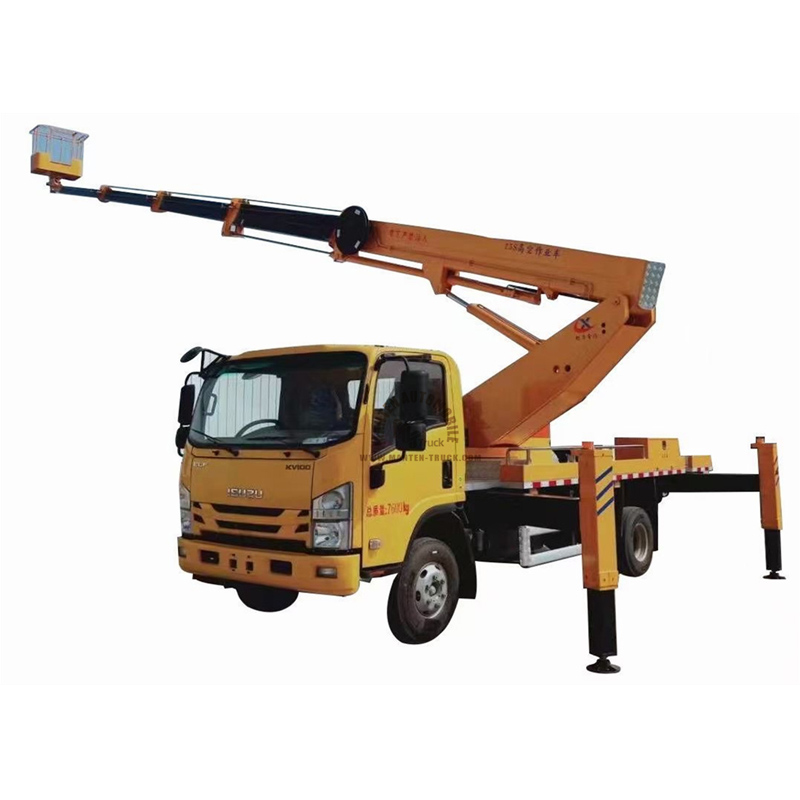

boom truck lift

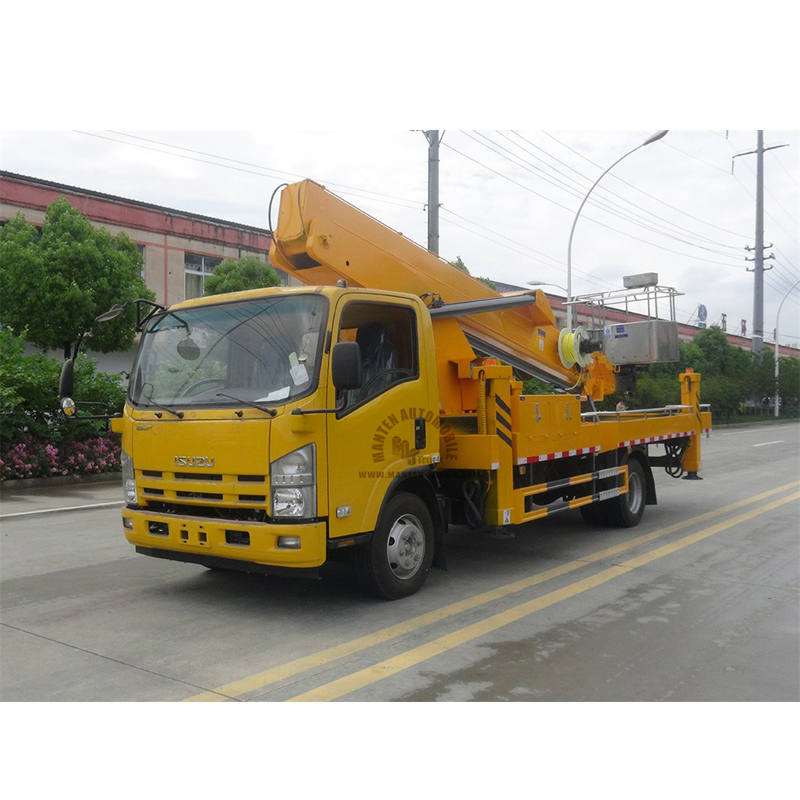

boom truck with basket

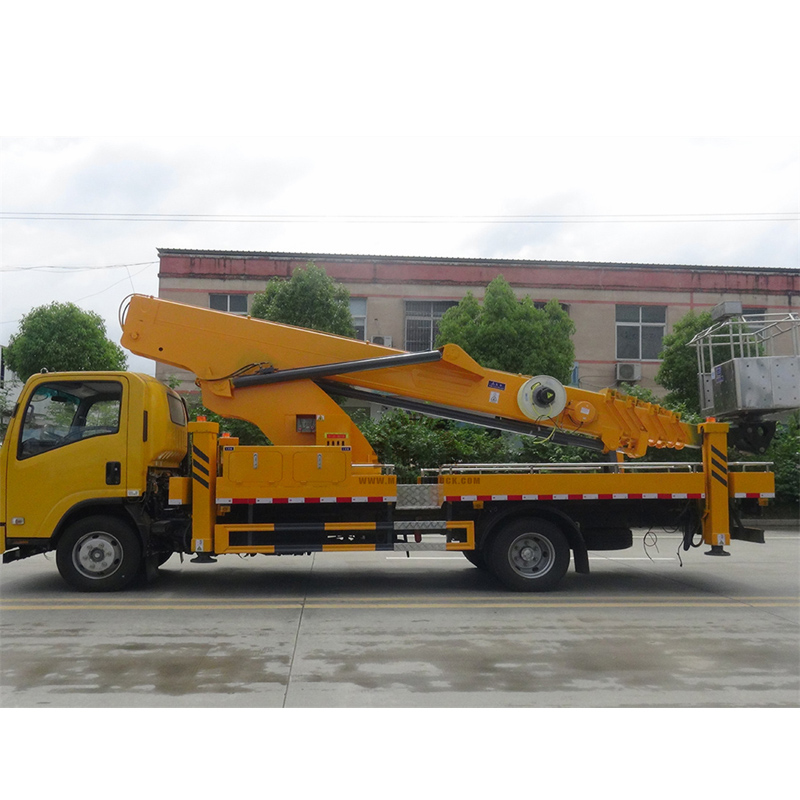

boom truck with man basket
bucket lift truck

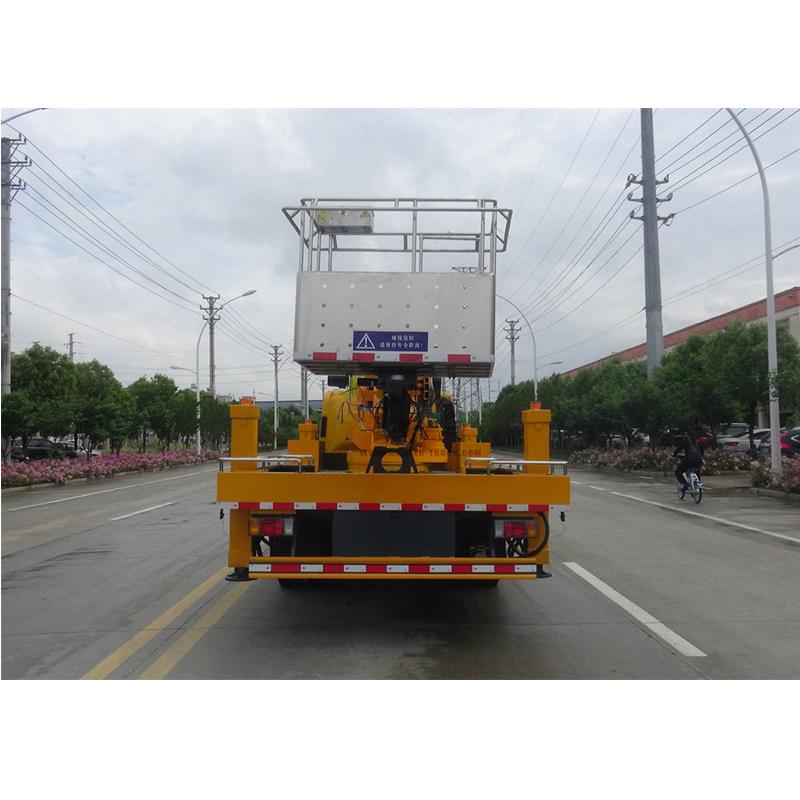

electric boom truck

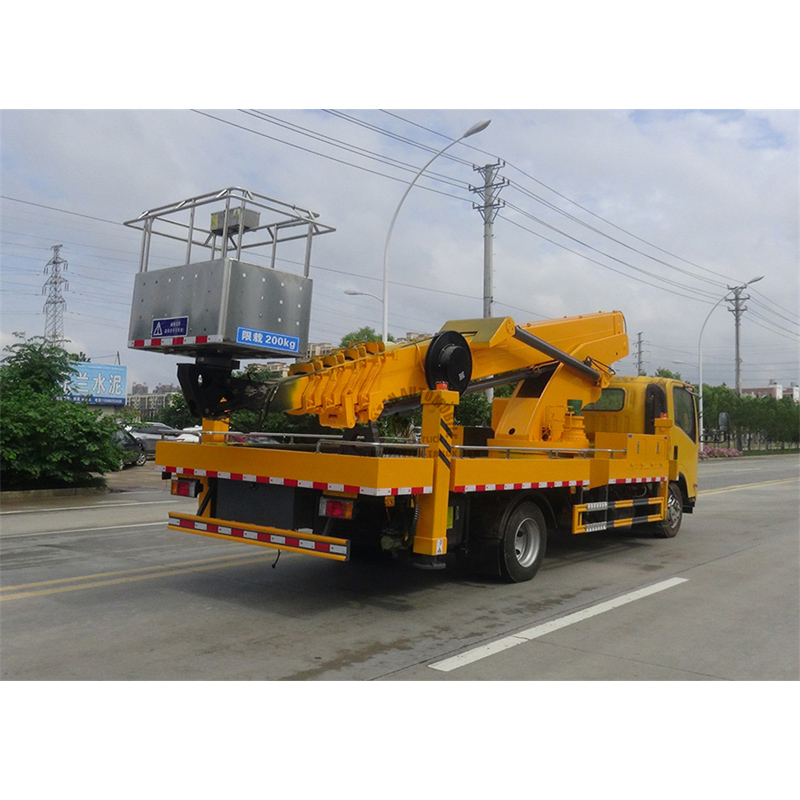

high lift bucket truck

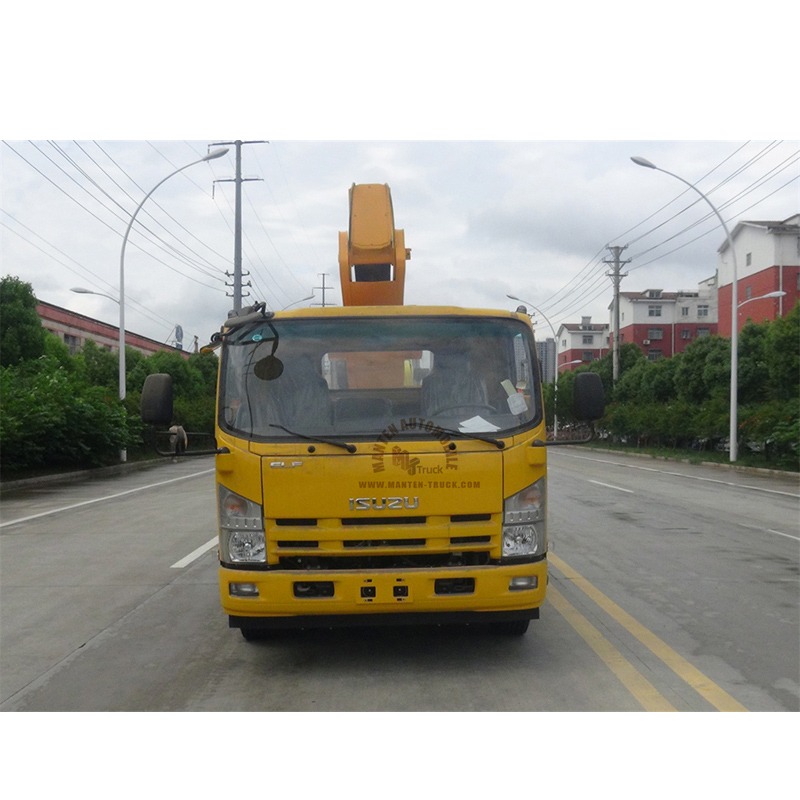

ladder boom truck
