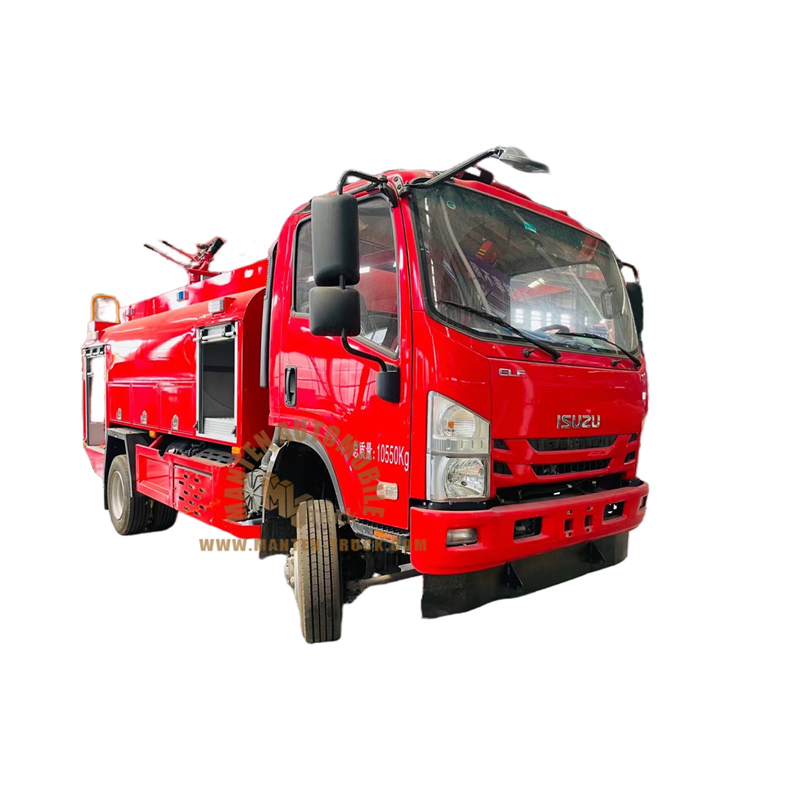

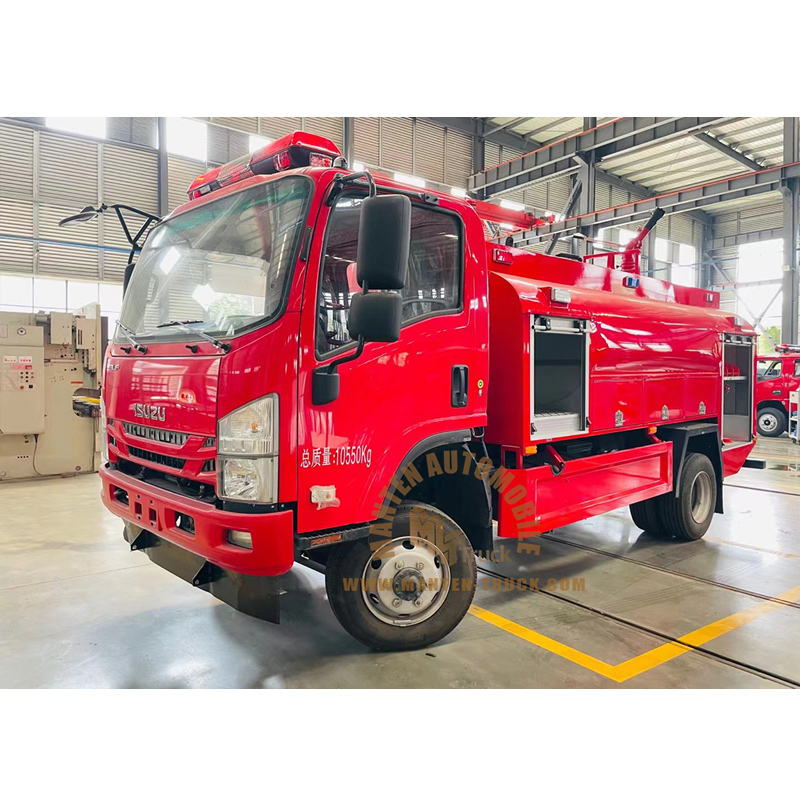

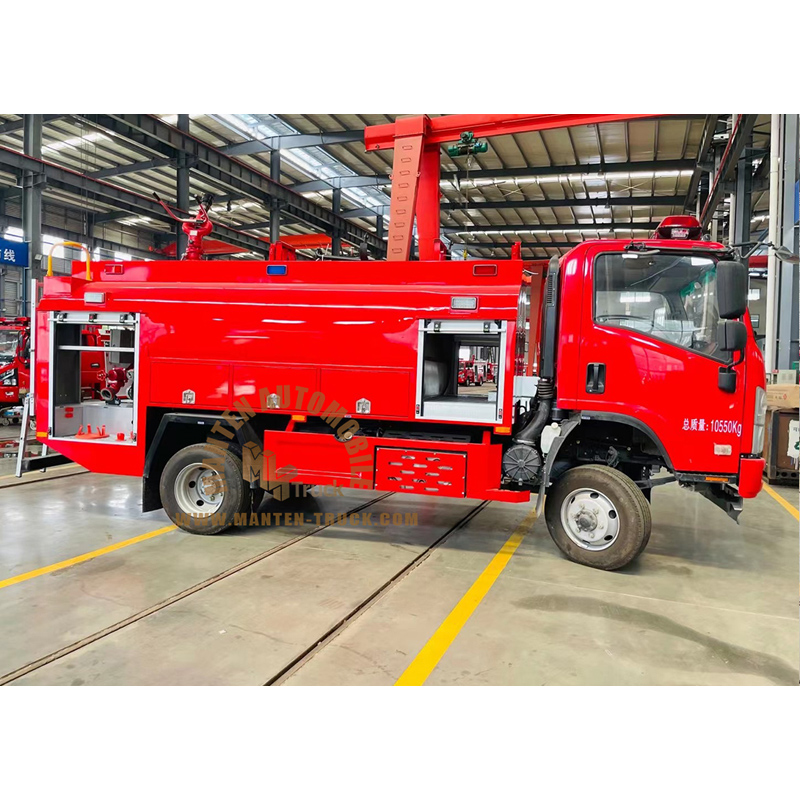

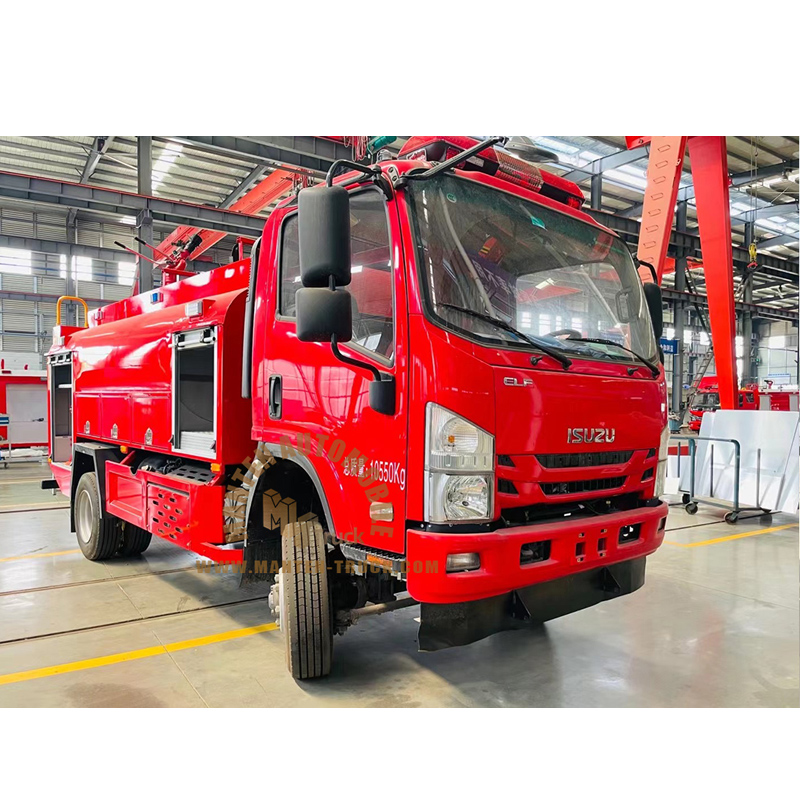

1. This ISUZU 6000 liter water sprinkler fire truck adopts ISUZU 4x4 chassis , 6,000 liters to 8,000 liters water tank, CB10/30 fire pump, PS30 fire monitor and fire fighting equipment.
2. This ISUZU 6000 liter water sprinkler fire truck could be equipped with different fire monitor, manual control or electronic wireless control. The fire monitor water range is more than 60 meters.
3. This ISUZU 6000 liter water sprinkler fire truck could be equipped with different fire pump (CB10/30 low pressure pump or CB20.10/15.30 medium and low pressure pump ). The max flux is 1800 liters at 10 bar.
3. The water tank material of ISUZU 6000 liter water sprinkler fire truck can be Q235B carbon steel or stainless steel.
SPECIFICATION | ||
Truck Specification | ||
Product Name | ISUZU 6000 liter water sprinkler fire truck | |
Truck Manufacturer | MANTEN GROUP | |
Overall dimensions (L×W×H) | About 7000*2500*3000mm | |
Chassis Specification | ||
Cabin | ISUZU ELF, crew cabin or single cabin, with A/C | |
Drive type | 4*2, 4*4 | |
wheelbase | 3800mm | |
Fuel type of engine | Diesel | |
Engine | Model | 4HK1-TC50 |
Maximum horse power | 190hp | |
Number of cylinders | 4 | |
Emission standard | Euro 5 | |
Gear box | Type | ISUZU MLD,Manual, 6 forwards and 1 reverse |
Tyres | Size | 8.25R20 or 235/75R17.5 |
Quantity | 6+1 spare tire | |
Upper body specification | ||
Water tank | Capacity | 6,000 liters to 8,000 liters |
Tank Material | 5mm Q235 Carbon steel or stainless steel | |
Function | Equipped with crew cabin or single cabin | |
Equipped with fire monitor, manual control or electronic wireless control. The fire monitor water range is more than 60 meters. | ||
Equipped with (CB10/30 low pressure pump or CB20.10/15.30 medium and low pressure pump ). The max flux is 1800 liters at 10 bar. | ||
Equipped with fire fighting equipment like as fire gun, fire hose, high pressure DN25 hose reel or others. | ||
Equipped with front and rear water sprinklers or rear working platform. |
