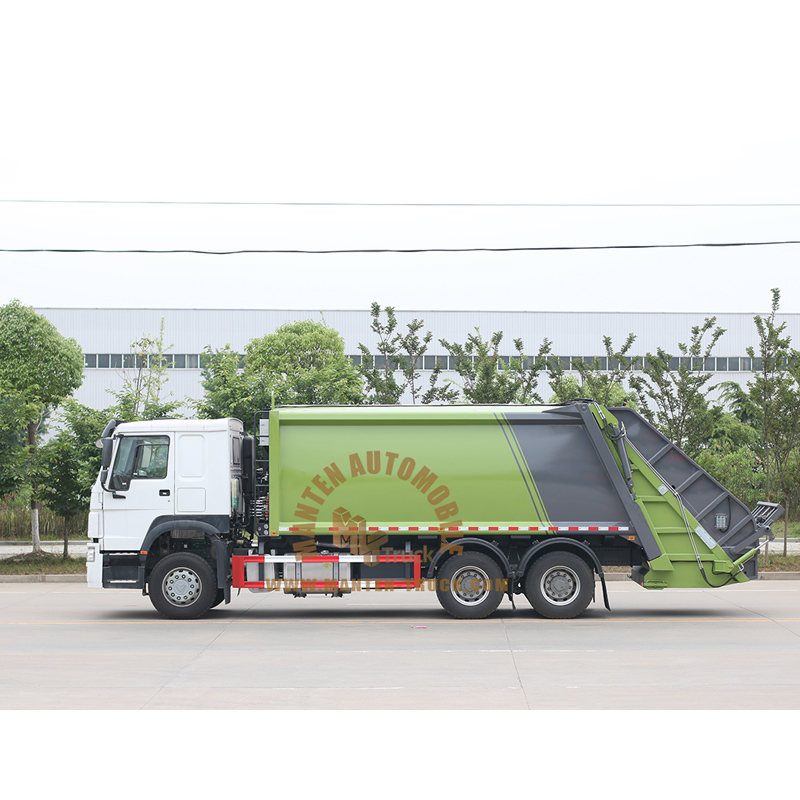

Sinotruk Howo Rear Loader Garbage Truck

1. SINOTRUK HOWO Rear Loader Garbage Truck  adopts HOWO chassis,WEICHAI 336HP engine power,10 forwarder & 2 reverse transmission ,12.00R20 Radial tires.

2. Sewage /dust tank is made of high strength carbon steel ,5mm thinkness for side and bottom.

It adopts high-quality oil cylinder, multi-channel valve, hydraulic oil pump and hydraulic locking device, as well as imported CAN PLC electric control system.

3. Simple and convenient operation: one key operation and manual operation, with three electric control operation boxes.

Specifications of Sinotruk Howo Rear Loader Garbage Truck

Truck Specification
Product NameSINOTRUK HOWO Rear Loader Garbage  Truck (Waste Compactor Trucks
Truck ManufacturerMANTEN GROUP
Overall dimensions (L×W×H)About 101500*2500*3500mm
Chassis Specification
CabinHOWO-7,with A/C
Drive type6X4
Fuel type of engineDiesel
Maximum horse power266HP/290HP/336HP/371HP
Number of cylinders6
Emission standardEuro 2
Gear boxTypeManual,10 forward & 2 rear
TyresSize12.00R20 Radial tires

Quantity10+1 spare tire
Upper body specification
Waste TankCapacity20 M3 / 20,000Liters /20 CBM /20 CU.M
Tank Material5mm Q235 Carbon steel
Function1.Can choose 240L(single bin, double bins)and turnover device(plastic or steel garbage bin), can also choose ground hopper ,swing arm device or other kinds of loading device.
2.With manual and automatic two sets of control method, the operator can control in the cabin, in the middle side or the back of the truck , very convenient and efficient. With working device of emergency braking stop button.
3.Garbage body use frame design, elegant, strong structure, large effective capacity.
4.Equipped with special collection box, sewage directly into the sewage tank in the process of compression, that is effectively prevent second pollution caused by sewage leaks.
5.Through hydraulic system design, the truck achieve the function of two-way garbage compression, that is improve the compressibility ,make the compression ratio up to 1:2.5,the garbage can reach more then 600~800kg/m3 after compression.CAN electric automatic control.
