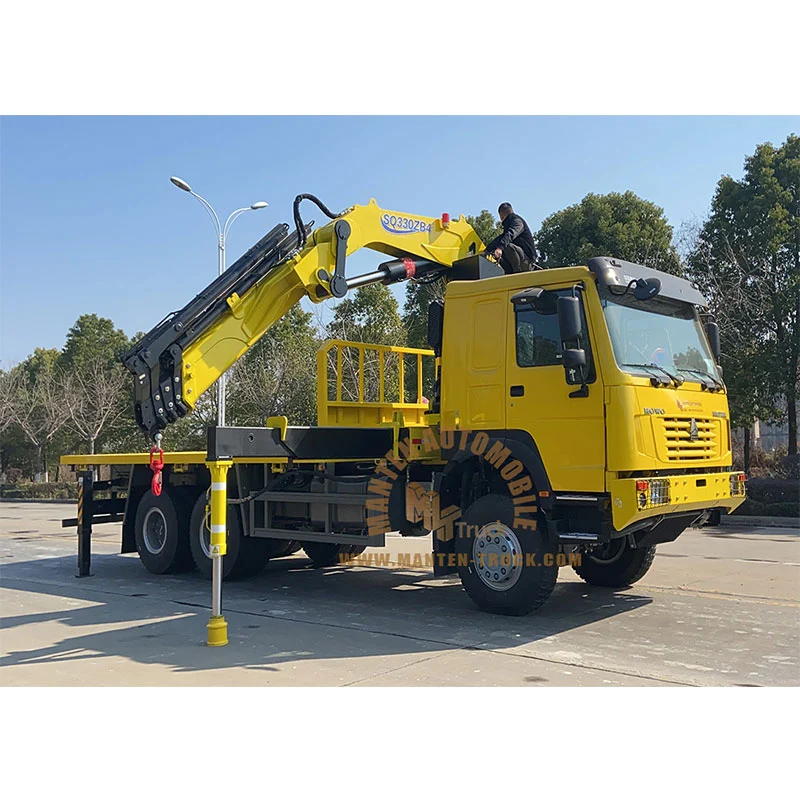

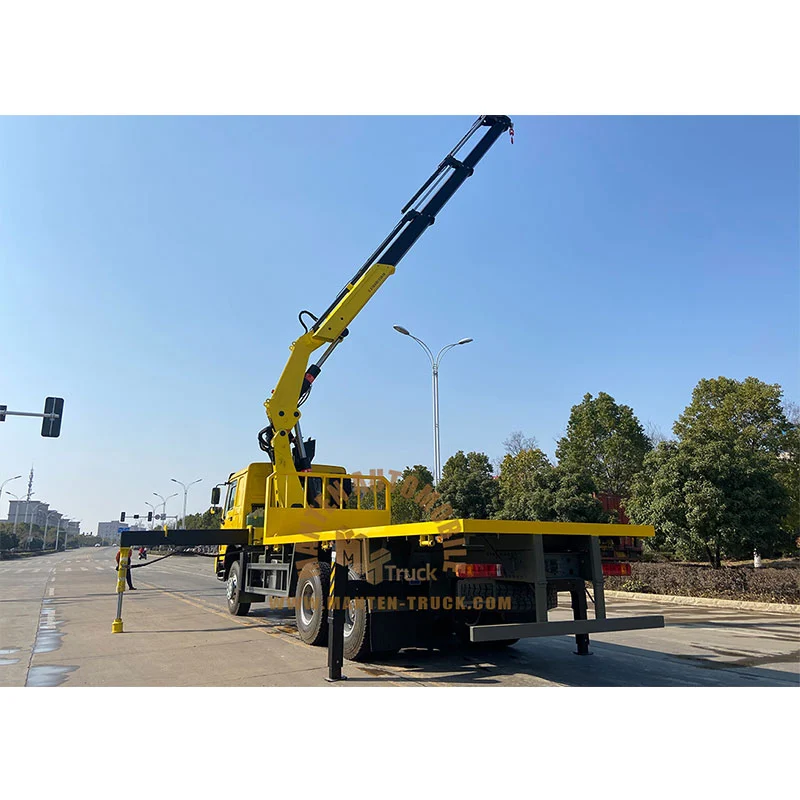

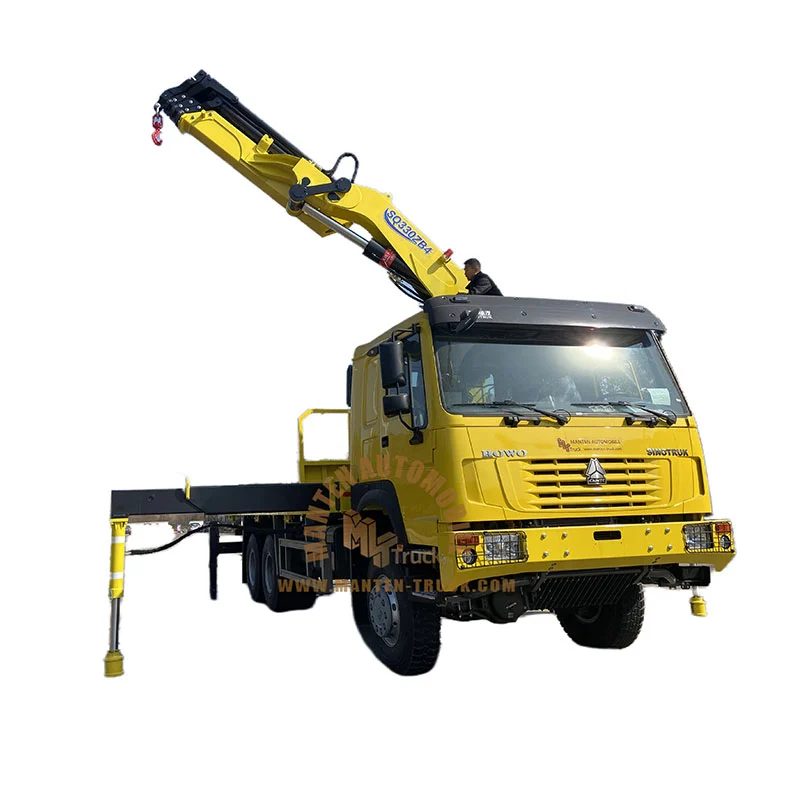

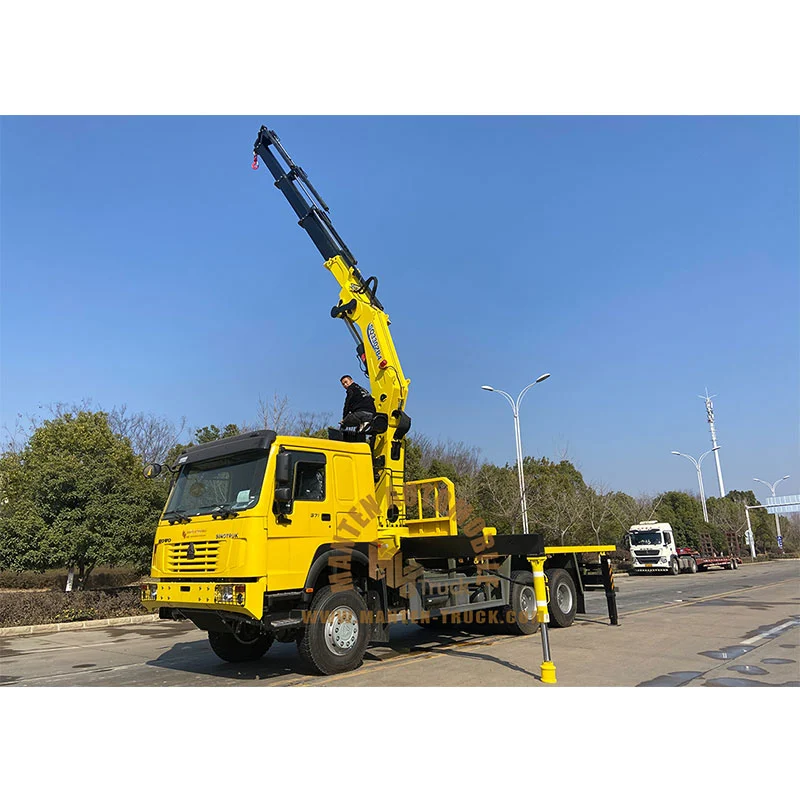

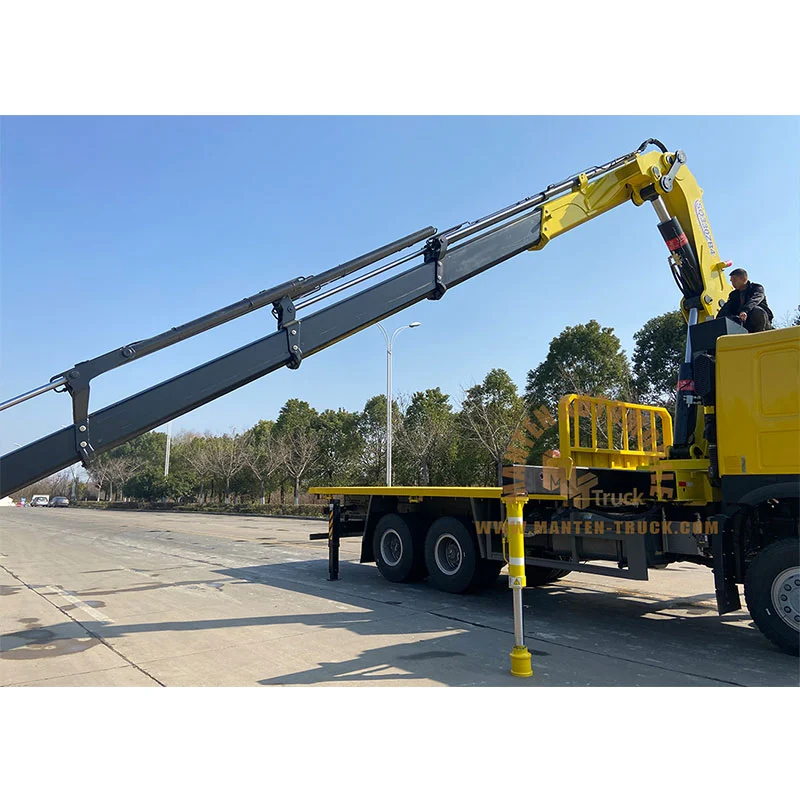

1. This HOWO 6X6 All driven flatbed truck with a 16ton jib boom crane adopts howo 6x6 truck chassis, 16ton crane, electronic control system, and hydraulic lifting system.
2. This HOWO 6X6 All driven flatbed truck with a 16ton jib boom crane could be equipped with many lifting cranes,container twist locks and rear climbing ladders.
SPECIFICATION | ||
Truck Specification | ||
Product Name | HOWO 6X6 All driven flatbed truck with 16ton jib boom crane | |
Truck Manufacturer | MANTEN GROUP | |
Overall dimensions (L×W×H) | About 105000*2550*3800mmmm | |
Chassis Specification | ||
Cabin | HOWO 76 flat cabin | |
Drive type | 6*6 | |
wheelbase | 4600+1350mm | |
Fuel type of engine | Diesel | |
Engine | Model | WD615.47 |
Maximum horse power | 371hp | |
Number of cylinders | 6 | |
Emission standard | Euro 3 | |
Gear box | Type | HW19710,Manual, 10 forwards and 2 reverse |
Tyres | Size | 12.00R20 radial tyre |
Quantity | 10+1 spare tire | |
Upper body specification | ||
Platform | LengthxWidth | 6300x2400mm |
Rated loading capacity | 15000kg- 20000kg | |
Lifting Crane | Crane brand | XCMG /SANY or other Chinese brands |
Crane lifting capacity | 10ton, 12ton, 14ton, 16ton | |
Crane type | straight boom or Knuckle boom | |
Function | Equipped with hydraulic lifting crane | |
Equipped with container locks which can carry the 20ft containers. | ||
Equipped with rear hydraulic climbing ladder which can carry the contruction like as the wheel loader, forklift , excavator and other machine. |
