The rotating speed of the sweeping disc can be selected according to different cleaning conditions: high, medium and low, to ensure good cleaning effect under various pollution conditions.
SPECIFICATION | ||
Truck Specification | ||

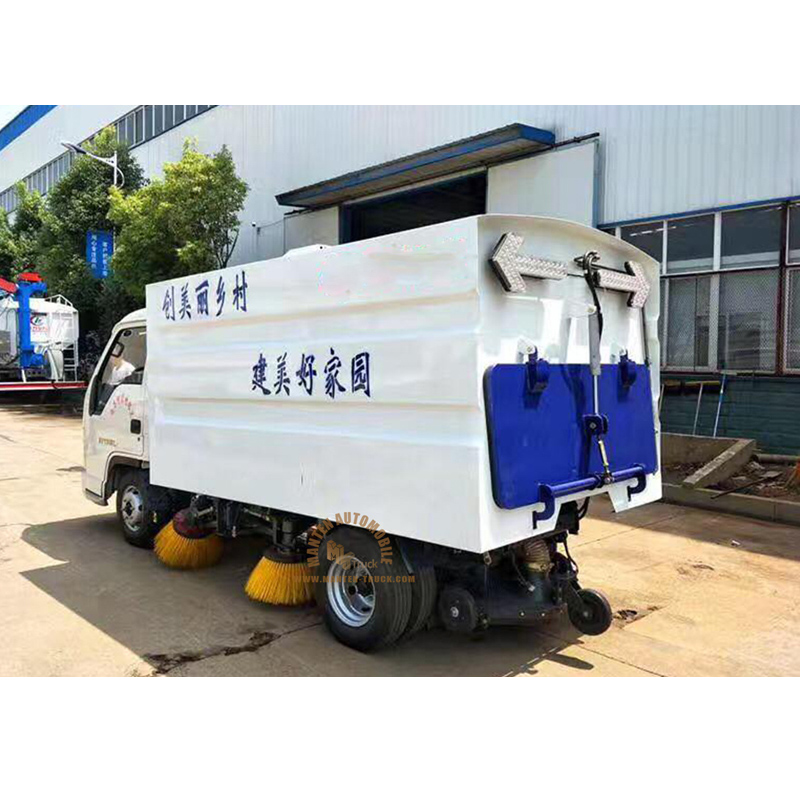

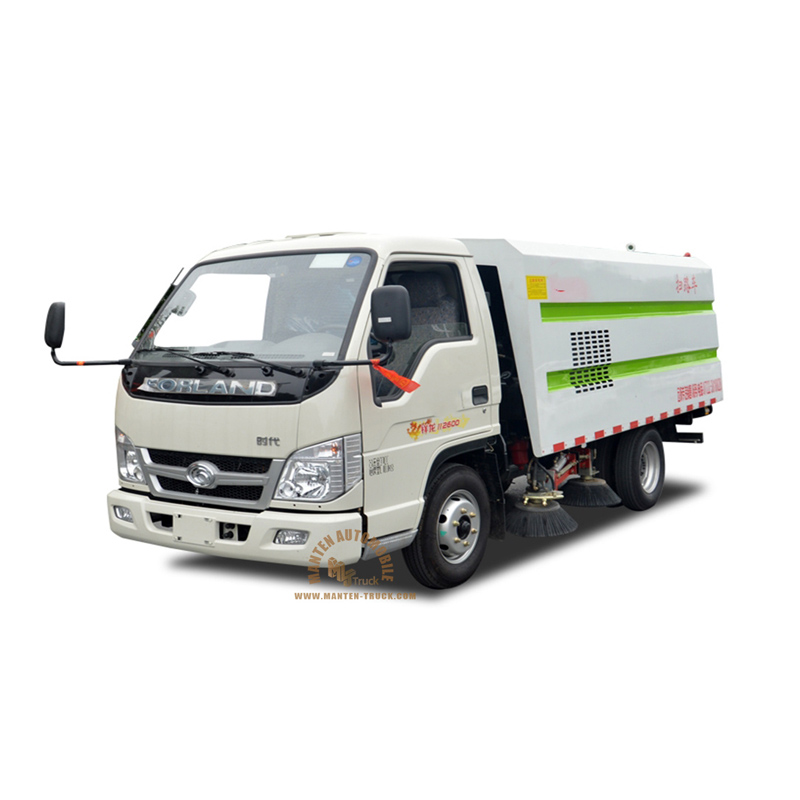

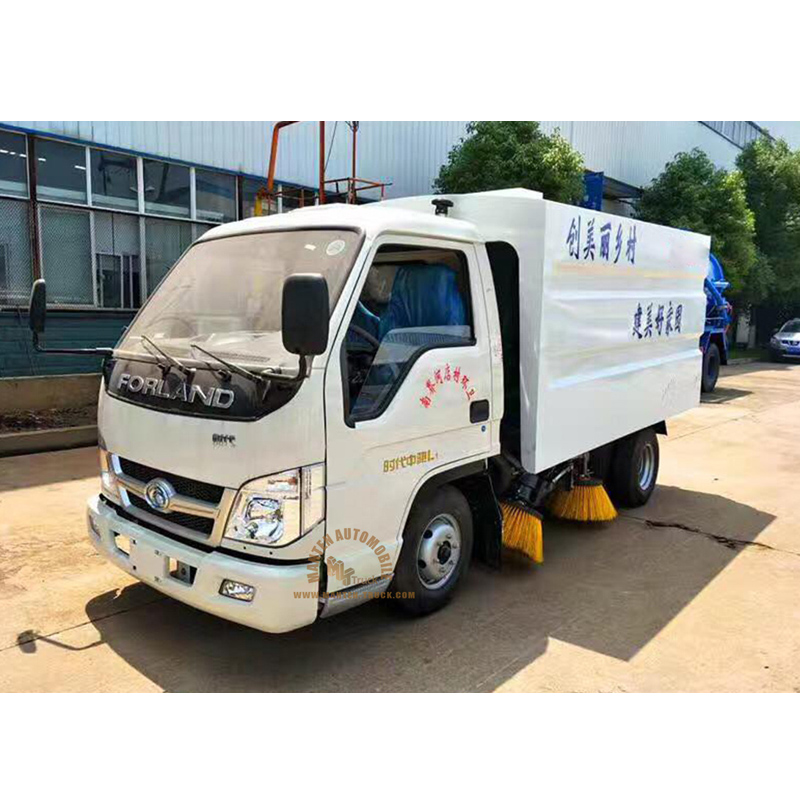

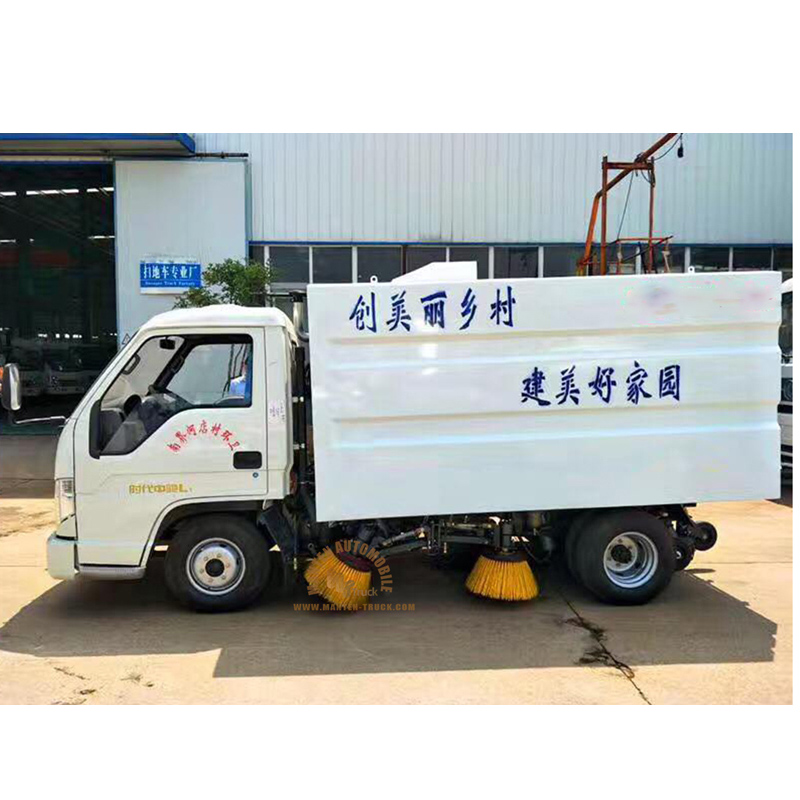

Product Name | 3 cbm 3000 liters foton 2.5 m3 road sweeper Truck | |
Truck Manufacturer | MANTEN GROUP | |
Overall dimensions (L×W×H) | About 5995*2100*2870mm | |
Chassis Specification | ||
Cabin | forland cabin, LHD/RHD, A/C | |
Drive type | 4*2 | |
wheelbase | 3360mm | |
Fuel type of engine | Diesel | |
Engine | Model | 4DW91-63NG2, 63hp |
Maximum horse power | 63 hp | |
Number of cylinders | 4 | |
Emission standard | Euro 2 | |
Gear box | Type | 5 forward & 1 rear |
Tyres | Size | 6.50R16 |
Quantity | 6+1 spare tire | |
Upper body specification | ||
Dust tank | 2.5 m3 | Water tank: 1.5 m3 |
Working Performance | 1. Sweeping efficiency 95%; | |
2. Max suction size 120mm; | ||
3. Sweeping width 2.8-3.0m; | ||
4. Max cleaning capacity 60000 m2/h; | ||
5. Butterfly disc extend size ≥400mm; | ||
6. Sweeping speed 3-20km/h. | ||
Deputy Engine System | ||
Deputy engine model | JX493-G3,78hp | |
Fuel type | diesel | |
Tank System | ||
Water tank | Material: stainless steel | |
Volume: 1500L | ||
Garbage tank | Material: stainless steel | |
Volume: 4000L | ||
Discharging door opening angle : ≥45° | ||
Hydraulic System | ||
Type | electrical control | |
Main components | gear pump, hydraulic motors, hydraulic cylinders, solenoid valve | |
System pressure | 16Mpa | |
Hydraulic oil tank capacity | 60L | |
Oil temperature | 60℃ | |
Electrical System | ||
Type | DC24V | |
Voltage | 24V | |
Battery | 24V | |
Spraying Water System | ||
Main components | electric diaphragm pump, water filter, nozzle | |
Sweeping Device System | ||
Type | centre installation 4pcs sweeping disc, hydraulic motor drive, right front can be independently controlled, with functions of avoiding collision response | |
Sweeping disc diameter | 850mm | |
Sweeping disc-angle | forward 4-6°, | |
outword 4-7° | ||
Sucking Disc System | ||
Type | single suction, hydraulic control, spring suspension | |
Suction entrance diameter | 200mm |
